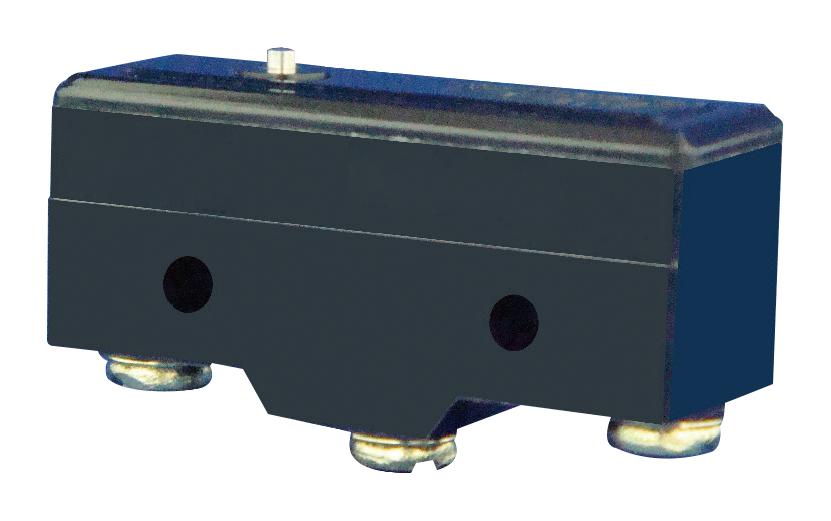

MULTICOMP PRO MC002386 Microload Switch
Microload switches with high switching capacity and a wide range of actuator options are designed for reliable performance in various automation and control applications. They feature 15A electrical load capacity, a high durability of 500,000 electrical operations, and an operating speed from 0.01mm to 1m/s. Enclosed in a robust IP00 protection class, these switches comply with IEC 60947-5-1 standards. Suitable for industrial environments, they offer excellent insulation resistance, dielectric strength, and pollution degree rating, ensuring safe and dependable operation in demanding conditions.
MULTICOMP PRO MC002386 Microload Switch Specifications:
- Protection Class: IP00
- Rated Voltage: 250V AC / 15A, 480V AC / 15A
- UL Rating: 0.5A/125V DC, 0.25A/250V DC
- Mechanical Life: 20,000,000 operations minimum
- Electrical Life: 500,000 operations minimum
- Operating Speed: 0.01mm to 1m/s
- Insulation Resistance: 100MQ min. at 500V DC
- Contact Resistance: 15mΩ max. initial value
- Dielectric Strength: 2000V AC between metal parts and ground
- Rated Insulation Voltage: 250V AC
- Pollution Degree: 3
- Vibration Resistance: 10–55Hz, 1,000m/s^2
- Shock Resistance: 300m/s^2 malfunction, 1,000m/s^2 destruction
- Ambient Temperature Range: -25°C to +80°C
- Operating Frequency: 20 operations/min. electrical, 240 operations/min. mechanical
- Rated Frequency: 50/60Hz
Buy the Multicomp Series Microload Switches: MC002386
Buy your Multicomp Series Microload Switch MC002386 online today and take advantage of reliable, high-capacity switching with excellent durability. Designed for industrial control, these switches feature a 15A load capacity, a robust IP00 protection rating, and a versatile range of actuators to suit various applications. With mechanical durability of 20 million operations and electrical life of 500,000 cycles, they are ideal for demanding environments. Place your order now and enhance your automation projects with trusted quality, fast shipping, and excellent customer support.
Order your Multicomp Series Microload Switch MC002386 today and ensure high-performance control for your industrial automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002386?
You can click on the BUY or RFQ button to purchase MC002386 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002386?
You can download the MC002386 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002386?
MULTICOMP PRO
