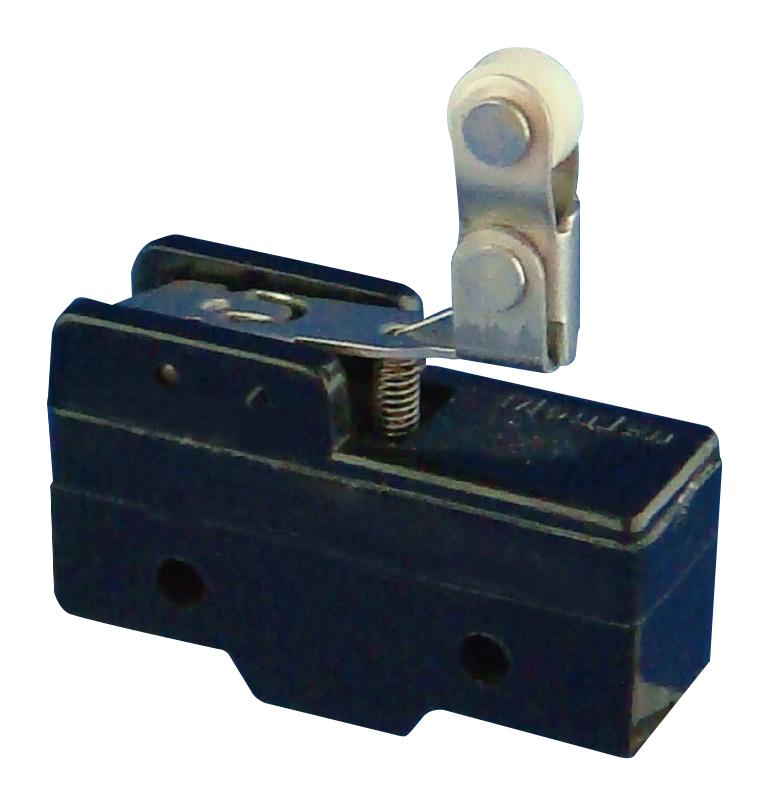

MULTICOMP PRO MC002394 Microload Switch
Microload switches from multicomp offer high durability and reliable performance with a switching capacity of 15A and high repeat accuracy. These switches feature a wide operating speed range from 0.01mm to 1m/s, high insulation resistance of 100MQ, and robust construction compliant with IEC 60947-5-1 standards. Suitable for industrial automation, they include various actuator options like standard, spring, roller, and hinge levers, with a rated voltage of 250V AC and 15A current capacity. Designed for demanding environments, they are ideal components in control and switching applications requiring precise and durable operation.
MULTICOMP PRO MC002394 Microload Switch Specifications:
- Degree of protection: IP00
- Rated voltage: 250V AC
- Current capacity: 15A
- Mechanical operations minimum: 20,000,000 operations
- Electrical operations minimum: 500,000 operations
- Operating speed: 0.01mm to 1m/s
- Dielectric strength: 2,000V between terminals and ground
- Insulation resistance: 100MQ min. (at 500V DC)
- Contact resistance: 15mΩ max.
- Vibration resistance: 10~55Hz double amplitude, destruction at 1000mm/s²
- Shock resistance: 300mm/s² minimum malfunction, 1000mm/s² destruction
- Operating temperature: -25°C to +80°C
- Humidity range: 35% to 85% RH
Buy the Multicomp Microload – Reliable Microload Switches for Industrial Applications
Discover high-performance multicomp microload switches designed for industrial automation. With a robust construction, 15A switching capacity, and multiple actuator options, these switches ensure precise control and long-lasting durability. Ideal for demanding environments, they feature high insulation resistance and a wide operating speed range from 0.01mm to 1m/s. Compatible with various control and automation needs, these switches come with a 12-month warranty and are available for direct purchase online, ensuring reliable performance in manufacturing and control systems.
Get multicomp microload switches today—built for precision, durability, and wide operating speeds, perfect for demanding industrial control systems.
