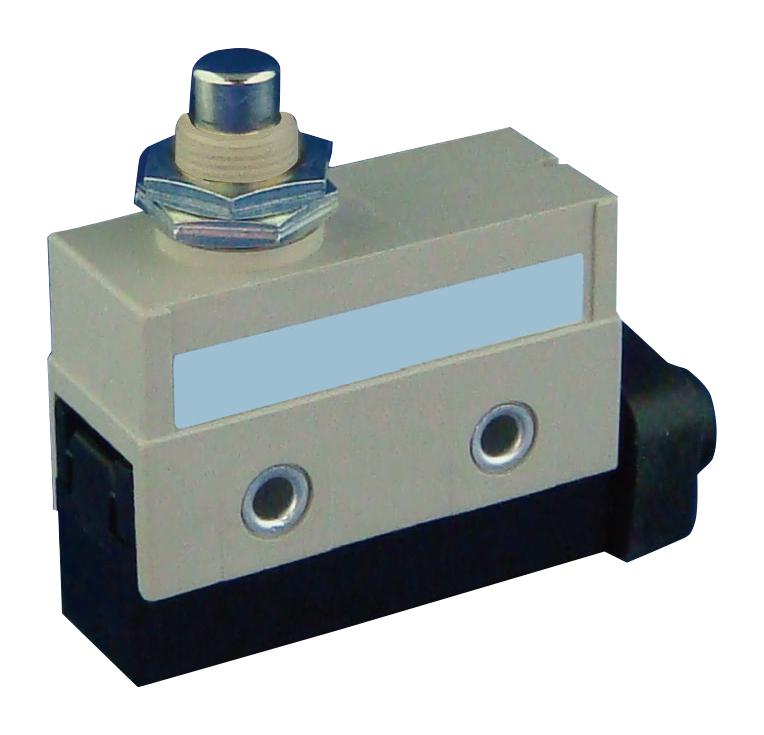

MULTICOMP PRO MC002399 Compact Switch
Compact enclosed switches are high-precision, durable devices designed for industrial applications, featuring IP67 protection and UL, CUL, CCC, and CE certifications. These switches support over 10 million mechanical operations, with excellent electrical durability. They operate reliably within temperatures from -10°C to +80°C, with vibration and shock resistance. Ideal for control panels and automation systems, they come in various configurations like plunger, roller, hinge, and crossroller levers, with dimensions and force parameters suited for demanding environments, and come with screw terminal connections.
MULTICOMP PRO MC002399 Compact Switch Specifications:
- Degree of protection: IP67
- Rated Voltage: 250V AC / 10A, UL508: 250V AC / 15A
- Electrical durability: 500,000 operations min.
- Mechanical durability: 10,000,000 operations min.
- Operating speed: 0.05mm/s to 0.5m/s
- Operating frequency: 20 operations/min electrical, 120 operations/min mechanical
- Insulation Resistance: 100MQ min. at 500V DC
- Contact Resistance: 15mΩ max.
- Dielectric Strength: 2,000V AC for 1 min between current-carrying parts and ground
- Rated insulation voltage: 1000V AC
- Vibration Resistance: Malfunction at 10-55Hz, 1.5mm double amplitude; destruction at 1000m/s²
- Shock Resistance: Malfunction at 300m/s²
- Ambient Temperature Range: -10°C to +80°C
- Humidity Range: 35% to 95% RH
- Operating Force: 11.8N, 4.9N depending on model
- Travel: 1.5mm to 3mm
- Weight: 91.1g to 115.39g depending on model
Buy the Multicomp Compact Switch – Reliable Enclosed Switches for Industrial Applications
Secure your automation projects today by purchasing the Multicomp Pro Compact Switch MC002399 online. Designed for durability, these IP67-rated switches support over 10 million operations, offering reliable performance in harsh environments. Suitable for various control and automation applications, they feature screw terminals for easy wiring and come in multiple configurations including plunger and roller levers. With certifications like UL and CE, they ensure safety and compliance, making them an excellent choice for industrial machinery and control panels. Order now and ensure your project’s success with trusted quality.
Order your Multicomp Pro Series MC002399 compact enclosed switch today and enhance your control panels with dependable, IP67-rated operation.
