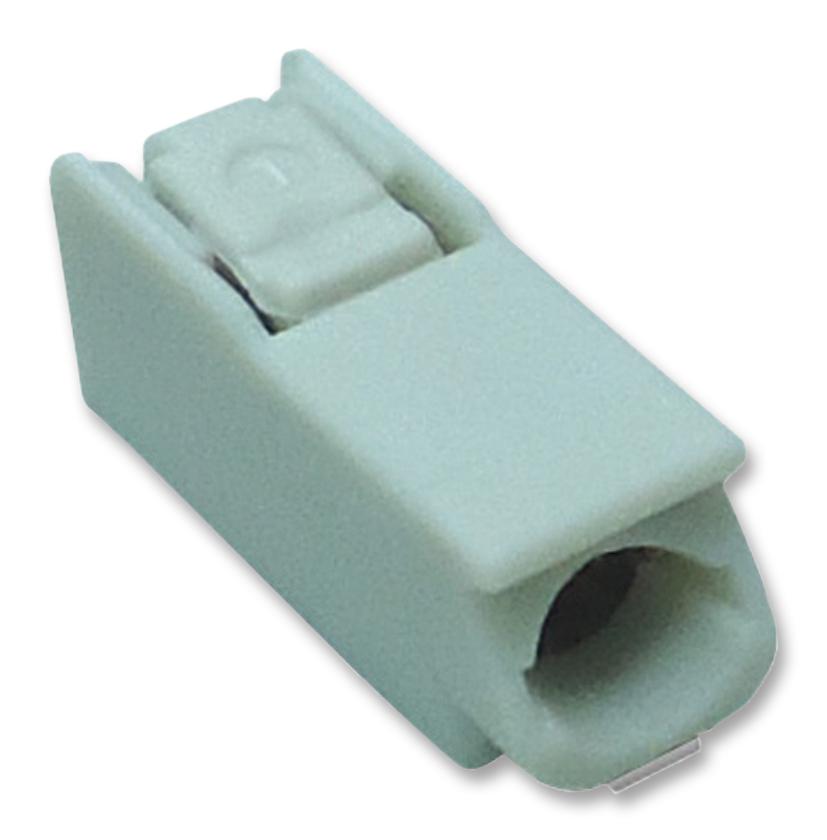

MULTICOMP PRO MC000779 SMD Terminal Block
The SMD terminal block with a 4mm pitch offers easy surface-mount installation for connecting wires in compact electronic devices. It features a durable polyamide 6.6 button and a copper contact with tin plating for excellent electrical conductivity and corrosion resistance. With a current rating of 9A AC per pole and insulation withstand voltage of 1,500V AC, it is suitable for power and signal applications. The terminal block supports wire ranges of 18-24AWG with a strip length of 8-9mm, making it versatile for various wiring needs while maintaining reliable electrical performance.
MULTICOMP PRO MC000779 SMD Terminal Block Specifications:
- Current Rating: 9A AC per pole
- Insulation withstand voltage: AC 1,500V minimum
- Insulation Resistance: >2,000MOQ at DC 500V
- Temperature Range: -60°C to +105°C
- Wire Range: 18-24AWG
- Wire Strip Length: 8-9mm
- Body Material: Grey conductive polystyrene alloy
- Pole Lengths: 8mm, 12mm, 16mm
- Pole Dimensions: 4.25mm, 8.25mm, 12.25mm respectively
- Contact Material: Copper with tin plating
- Button Material: Polyamide 6.6
- Dimensions: Length varies with pole count, typical approx. 4mm pitch
- Reel Diameter: 13 inches (330mm)
- Pack Quantity: 21,300 pieces per reel
Buy the Multicomp Series SMD Terminal Block: MC000779
Purchase the high-quality SMD terminal block online today and enjoy fast delivery. With a 4mm pitch, 9A current rating, and excellent thermal stability, this surface-mount component is ideal for compact electronics. Easy to install with wire ranges of 18-24AWG and a strip length of 8-9mm, it ensures secure electrical connections in power and signal applications. Order now to benefit from our competitive prices and dedicated customer support for your electronic assembly needs.
Order your Multicomp Series SMD Terminal Block now and ensure reliable, space-efficient electrical connections for your surface-mount projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000779?
You can click on the BUY or RFQ button to purchase MC000779 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000779?
You can download the MC000779 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000779?
MULTICOMP PRO
