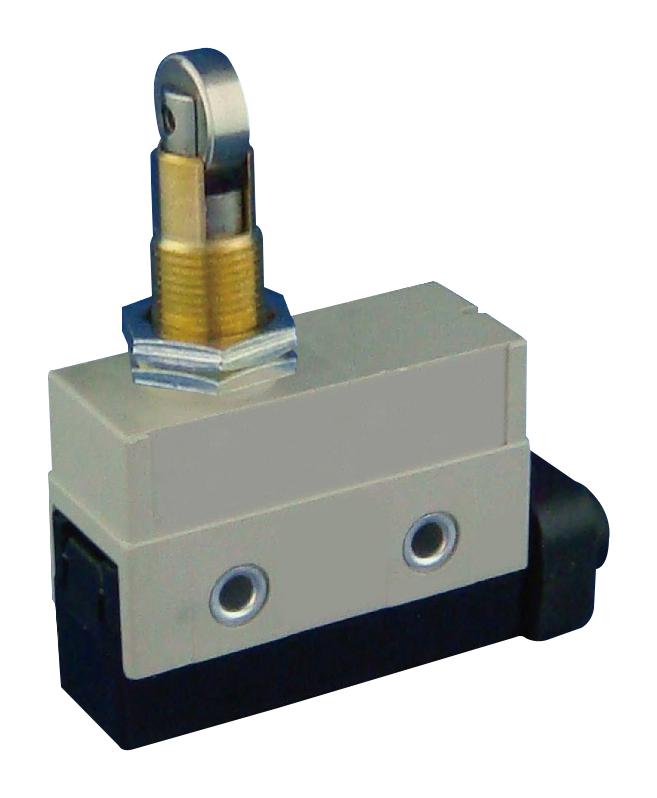

MULTICOMP PRO MC002410 High Utility Enclosed Switch
High utility enclosed switches are designed for demanding applications requiring durability, high mechanical strength, and resistance to dust and water. With an IP67 protection rating, these switches feature a built-in basic switch with a minimum of 10 million operations and a rated current of 10A at 250V AC. They are suitable for industrial environments, certified by EN(TUV), UL, CSA, and CCC. Available with resin-molded terminals, these switches ensure reliable performance across various operating conditions, combining robustness with excellent electrical and mechanical longevity.
MULTICOMP PRO MC002410 High Utility Enclosed Switch Specifications:
- Degree of protection: IP67
- Rated Voltage: 250V AC
- Rated Current: 10A
- Mechanical durability: 10,000,000 operations minimum
- Electrical durability: 500,000 operations minimum
- Operating speed: 0.05mm/s ~ 0.5m/s
- Insulation Resistance: 100MQ min. (at 500V DC)
- Contact Resistance: Initial value varies
- Terminal Temperature Rise: 50°C max.
- Dielectric Strength: 1,000V AC between terminals of same polarity, 2,000V AC between current-carrying parts and ground
- Rated insulation voltage: 1,000V AC
- Pollution degree: 3
- Rated operating current: 10A
- Ambient temperature range: -10°C to +80°C
- Vibration resistance: Malfunction at 10-55Hz, 1.5mm double amplitude
- Shock resistance: Malfunction at 100m/s²
Buy the Multicomp Series High Utility Enclosed Switches: MC002410
Order the Multicomp high utility enclosed switch MC002410 online today and enjoy a robust, dust-proof, and water-resistant design rated IP67. This switch incorporates a built-in basic switch capable of enduring over 10 million operations, ensuring long-term reliability. Perfect for industrial environments demanding high mechanical strength and certified safety standards—including UL, CSA, and CCC approvals. With a rated current of 10A at 250V AC, it offers dependable electrical performance across various applications. Purchase now to benefit from fast delivery and trusted quality for your automation and control systems.
Buy Multicomp high utility enclosed switch MC002410 now and experience unmatched durability, environmental resistance, and reliable performance in demanding industrial applications.
