MULTICOMP PRO MC002429 Limit Switch

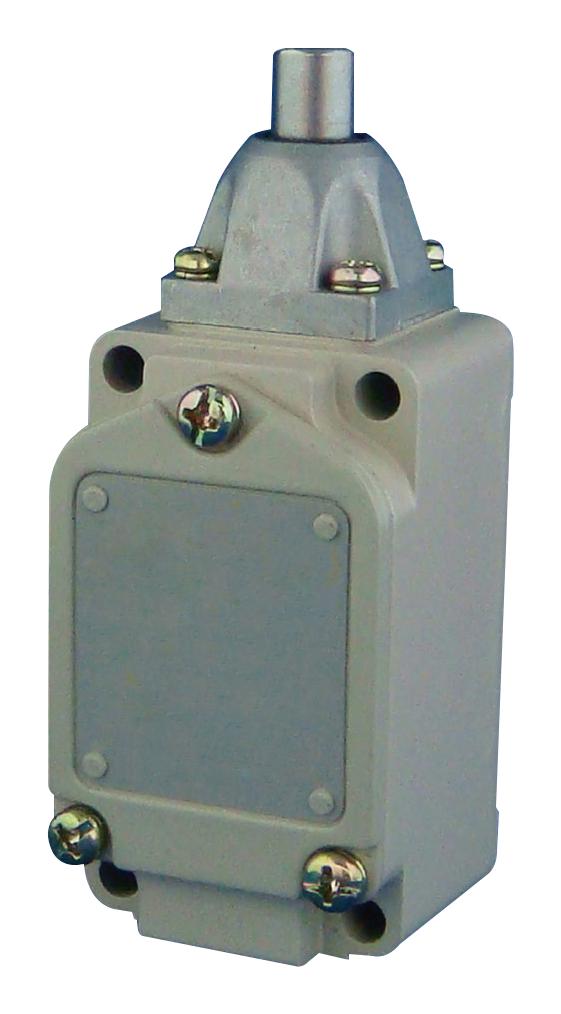

The multicomp Pro two-circuit limit switches are highly durable industrial devices rated IP67, suitable for harsh environments with vibration, shock resistance, and high dielectric strength. Designed with various plunger and lever options, they operate at AC/DC voltages up to 250V, with robust contact resistance of 25mΩ max. Capable of 750,000 electrical operations and 15 million mechanical actions, these switches feature UL, CSA, CCC approvals, and an operating temperature range of -10°C to +80°C. Ideal for automation, machinery, and safety systems requiring reliable limit detection.
MULTICOMP PRO MC002429 Limit Switch Specifications:
- Degree of protection: IP67
- Rating: IEC 60947-5-1 AC-15 250V AC / 2A, 48V DC/ 2A; UL508. A600 250V AC / 15A
- Insulation Resistance: 100MQ min. (at 500V DC)
- Contact Resistance: 25mΩ max.
- Dielectric Strength: AC2,200V (1,500V) between current-carrying parts and ground
- Electrical durability: 750,000 operations
- Mechanical durability: 15,000,000 operations
- Operating Speed: dmm ~ 1m/s
- Operating Frequency: Mechanical 120 operations/min, Electrical 30 operations/min
- Ambient temperature range: -10°C to +80°C
- Vibration resistance: malfunction 10~55 Hz 1.5mm double amplitude
- Shock resistance: malfunction 300m/s² min.
- Approved by UL, CSA, CCC
- Rated insulation voltage: 250V
- Pollution degree: 3
- Number of operations: Mechanical 15 million, Electrical 750,000
Buy the Buy multicomp Pro Two-Circuit Limit Switch Part Number MC002429 Online
Discover the dependable performance of the multicomp Pro two-circuit limit switch MC002429. Designed for demanding industrial environments, it features IP67 protection, UL, CSA, and CCC approvals. With a rated voltage of up to 250V AC/DC and high durability of 15 million mechanical actions, this switch is ideal for automation, machinery, and safety applications. Choose this rugged restrictor switch for reliable, long-lasting operation, ensuring your systems operate safely and efficiently with minimal maintenance requirements.
Order your multicomp Pro MC002429 two-circuit limit switch today and ensure reliable, rugged performance for your industrial automation projects.
