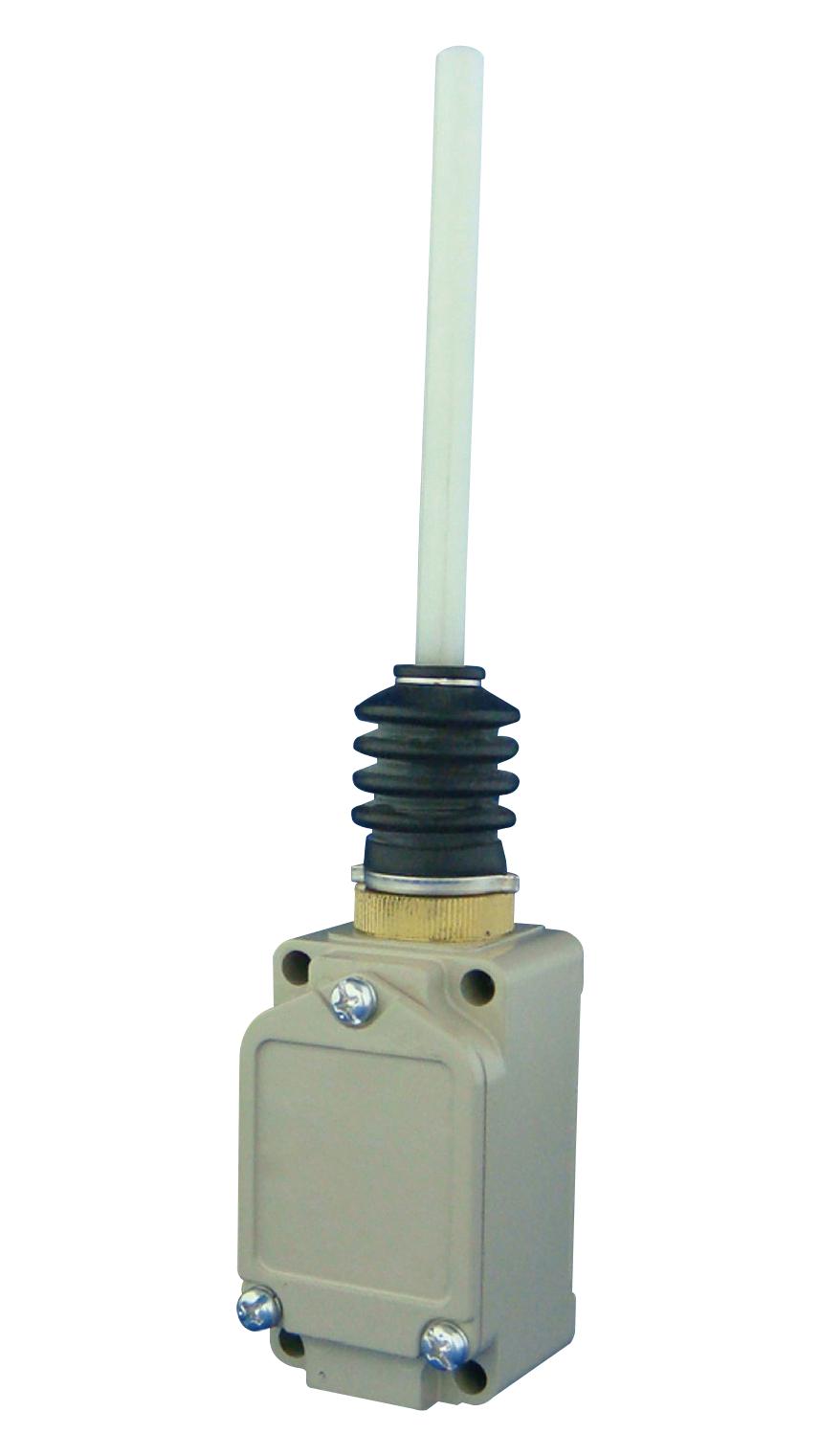

MULTICOMP PRO MC002440 Two-Circuit Limit Switch
The two-circuit limit switches by multicomp:ro are robust and reliable components designed for industrial automation. They feature high durability with mechanical operations reaching 15 million and electrical operations up to 750,000. These switches are rated for IEC 60947-5-1 AC-15 250V AC / 2A, UL508 250V AC / 15A, and UL recognized standards. They offer various operating forces, pre-travel, over-travel, and position options. With IP67 protection and tested for vibration and shock, these limit switches are suitable for demanding industrial environments, ensuring long-lasting performance and safety compliance.
MULTICOMP PRO MC002440 Two-Circuit Limit Switch Specifications:
- Degree of protection: IP67
- Rating: IEC 60947-5-1 AC-15 250V AC / 2A, UL508 250V AC / 15A
- Durability: Mechanical 15,000,000 operations, Electrical 750,000 operations
- Operating Speed: Mechanical ~ 1m/s
- Operating Frequency: Mechanical 120 operations/min, Electrical 30 operations/min
- Insulation Resistance: 100MQ min. at 500V DC
- Contact Resistance: 25mQ max. initial value
- Dielectric Strength: AC2,200V (1,500V) between current-carrying parts and ground
- Rated Insulation Voltage: 250V (EN60947-5-1)
- Vibration Resistance: Malfunction at 10–55 Hz, 1.5mm amplitude; Destruction at 1000mm/sec
- Shock Resistance: Malfunction at 300mm/sec
- Operating Temperature Range: -10°C to +80°C
- Humidity Range: 35% to 95% RH
- Approved Standards: UL, CSA, CCC
- Operational Characteristics: Various force and travel parameters as per part number
- Weight: Ranges from approximately 197.8g to 289.3g depending on model
Buy the Multicomp Pro MC002440 – Reliable Limit Switch for Industrial Applications
Purchase the multicomp Pro two-circuit limit switch MC002440 online today for reliable, high-performance control in demanding industrial environments. Featuring IP67 protection, adjustable force and travel parameters, and compliance with UL, CSA standards, this switch guarantees long-lasting durability and safety. Ideal for automating machinery, safety applications, and control systems, it provides peace of mind with verified testing for vibration, shock, and temperature resistance. Get your MC002440 now and enhance your operational efficiency with quality switching solutions that withstand tough industrial conditions.
Order your multicomp Pro MC002440 two-circuit limit switch today and ensure dependable control performance for your industrial automation projects.
