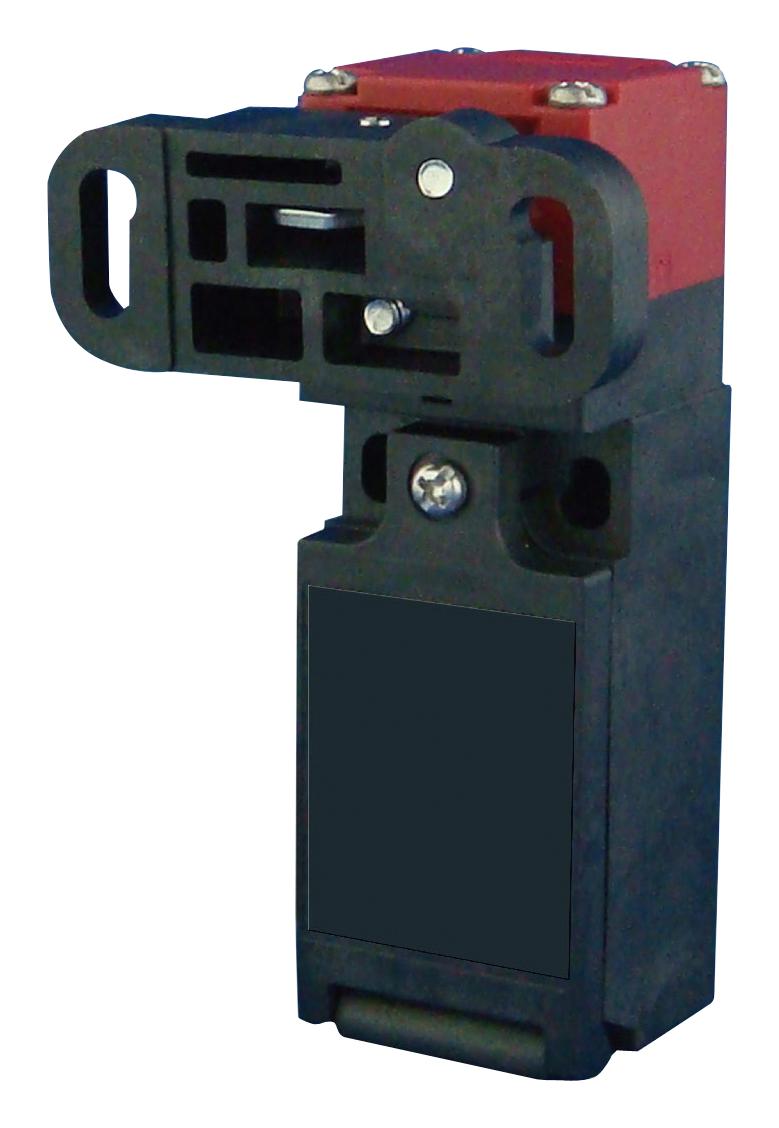

MULTICOMP PRO MC002459 Safety Limit Switch
This miniature safety limit switch features front-inserted operation keys, adjustable front-inserted operation, and horizontal or vertical mounting options. Designed for reliable safety control, it has a high degree of protection IP67, durability of up to 1,000,000 mechanical operations, and rated for 250V AC / 3A. Suitable for industrial automation, it withstands harsh environments with vibration resistance, shock resistance, and ambient temperature tolerance from -30°C to +70°C. It includes screw terminals, precise travel stroke of up to 28mm, and is approved under UL508 and EN60947-5-1 standards.
MULTICOMP PRO MC002459 Safety Limit Switch Specifications:
- Degree of protection: IP67
- Contact Ratings: AC-15 240V AC / 3A, DC-13 250V DC /0.27A, UL508 250V AC / 15A
- Durability: Mechanical 1,000,000 operations min., Electrical 300,000 operations min.
- Operating Speed: 0.05 to 0.5m/s
- Operating Frequency: Up to 30 operations/minute
- Insulation Resistance: 100MQ min.
- Contact Resistance: 25mQ max.
- Dielectric Strength: 2.5kV between terminals of same polarity, 4kV between current-carrying parts and ground, 6kV between terminals and non-current parts
- Rated Insulation Voltage: 300V
- Vibration resistance: Malfunction at 10~55 Hz with 0.75mm amplitude, destruction at 1000m/s^2
- Shock Resistance: Malfunction at 300m/s^2, destruction at 1000m/s^2
- Operating temperature: -30°C to +70°C
- Ambient humidity: Max 95%
- Terminals: Screw type
- Travel stroke: 10mm (max. for part MC002459)
- Weight: 116.1g (model MC002459)
Buy the Multicomp U002459 – Reliable Safety Switch for Industrial Applications
Purchase the Multicomp SeriesMC002459 miniature safety limit switch online today for your industrial safety needs. Featuring adjustable operation keys, IP67 protection, and high durability, this switch is ideal for demanding environments. It offers excellent resistance to vibration, shock, and temperature extremes with a travel stroke of 10mm. Equipped with screw terminals and rated for 250V AC / 3A, it guarantees reliable operation and safety in automation systems. Order now for fast delivery and trusted quality.
Order your Multicomp SeriesMC002459 safety limit switch today and ensure dependable protection in your industrial safety and automation projects.
