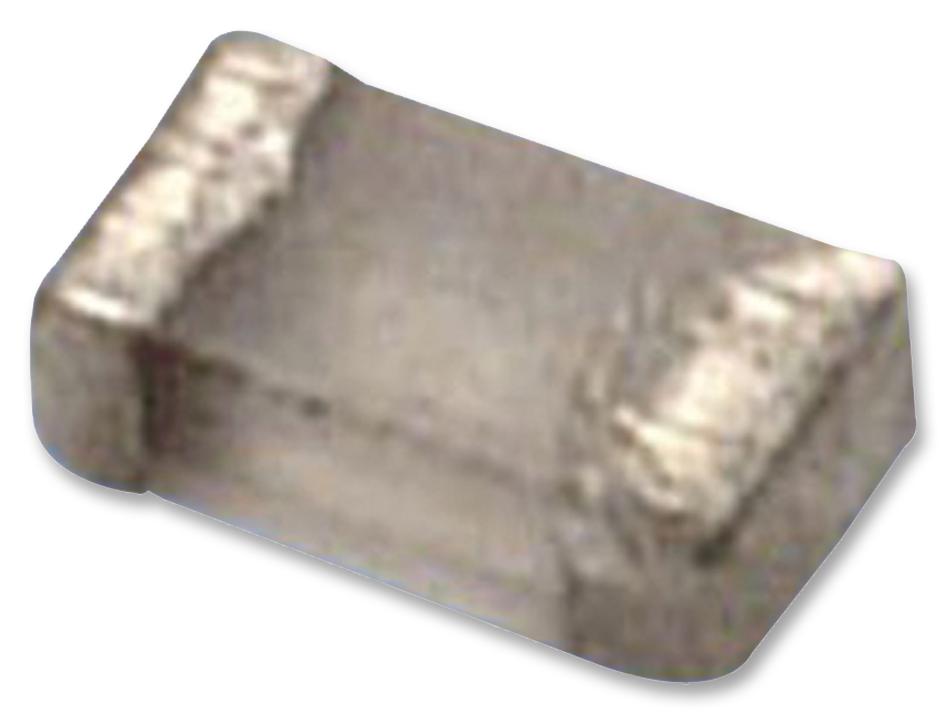

MULTICOMP PRO MP001611 Time-Lag SMD Fuse
The Time-Lag SMD Fuse offers compact size, high reliability, and excellent electrical performance. Its ceramic and glass construction provides superb environmental integrity, making it suitable for various industrial applications like cellphones, digital cameras, and hard disk drives. The fuse features rapid interruption of excessive current, is compatible with reflow and wave soldering, and is designed to UL 248-14 standards. Operating at temperatures from -55°C to +125°C, it ensures dependable performance in demanding conditions, with a non-resettable and halogen-free design for safety and environmental compliance.
MULTICOMP PRO MP001611 Time-Lag SMD Fuse Specifications:
- Operating Temperature: -55°C to +125°C
- Storage Conditions: +10°C to +60°C
- Relative Humidity: 75% yearly average, max 30 days at 95%
- Vibration Resistance: 24 cycles at 15 min each, 10-60Hz at 0.75mm, 60-2000Hz at 10g
- Rated Current: 7A
- Rated Voltage: 24V/32V DC
- Break current (I b): 300A at 24V DC
- Voltage Drop: 130 mV
- Resistance: 12.3 mΩ
- Melt Capacity: 14 A·sec
- Soldering Parameters: Peak temperature 260°C, reflow, wave, and hand soldering compatible
- Dimensions: 3.20mm x 2.03mm, profile compliant with Pb-Free standards.
Buy the Multicomp Series Time-Lag SMD Fuse: MP001611
Order the Multicomp Series Time-Lag SMD Fuse MP001611 online to ensure reliable overcurrent protection for your electronic devices. Designed with ceramic-glass construction, it provides rapid interruption of excessive current, high environmental stability, and UL compliance. Its small 1206 size allows easy integration into compact electronic assemblies, including cellphones and digital cameras. Suitable for reflow and wave soldering, this fuse withstands harsh conditions from -55°C to +125°C, offering consistent performance in critical applications. Purchase today for high-quality, dependable circuit protection.
Get Multicomp Series Time-Lag SMD Fuse MP001611 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001611?
You can click on the BUY or RFQ button to purchase MP001611 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001611?
You can download the MP001611 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001611?
MULTICOMP PRO
