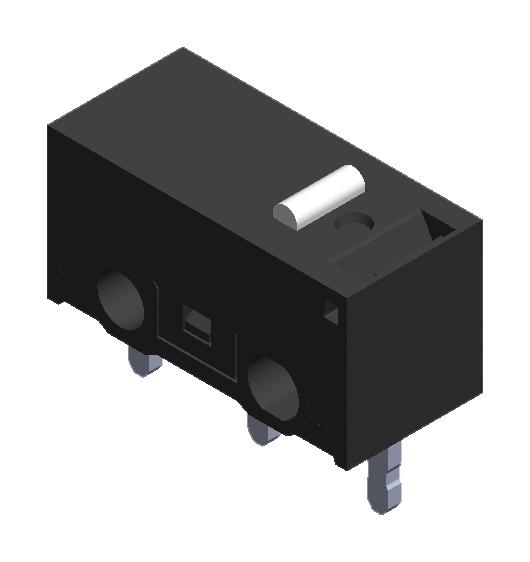

MULTICOMP PRO MP005557 Micro Switch
High-reliability miniature through hole snap action microswitch designed for precise switching in electronic, household, and communication equipment. Features durable construction rated for over 1 million cycles, with a contact resistance below 100mΩ and insulation resistance exceeding 100MΩ. Capable of operating at temperatures from -25°C to +75°C, it supports multiple actuator types including hinge, bent, pin, and simulated roller levers. Ideal for applications requiring SPST and SPDT configurations, ensuring long-lasting performance and safety with dielectric strength up to AC 1500V for 1 minute.
MULTICOMP PRO MP005557 Micro Switch Specifications:
- Contact Rating: 3A at 125V AC, 1.5A at 250V AC
- Contact Resistance: 100mΩ MAX
- Insulation Resistance: 100MΩ MIN
- Dielectric Strength: AC 1500V for 1 minute between current-carrying parts and ground
- Operating Temperature: -25°C to +75°C
- Durability: Over 1,000,000 cycles MIN.
- Mechanical Durability: 3A, 30,000 cycles MIN.
- Electrical Durability: 8,000 cycles MIN.
- Operating Force (OF): 26gf (0.25N) MAX or 40gf (0.39N) MAX depending on actuator type
- Release Force (RF): 2gf (0.02N) MIN
- Overtravel (OT): 0.55mm MIN, 0.20mm MIN for some models
- Movement Differential (MD): 0.50mm MAX or 0.20mm MAX depending on model
- Operating Position (OP): 8.5+1.5mm or 9.6+0.8mm depending on actuator
- Free Position (FP): 1.5mm or 11.8mm MAX depending on model
Buy the Multicomp Series Microswitch: MP005557
Get your high-reliability Micro Switch online today. Perfect for electronics, household appliances, and industrial applications, this switch offers long service life with over 1 million cycles, low contact resistance, and high dielectric strength. Its compact design and multiple actuator options make it suitable for a variety of precise switching needs. Experience hassle-free ordering and quick delivery, ensuring your projects stay on track with dependable components that meet industry standards and safety regulations.
Order your Multicomp Series Microswitch MP005557 today and ensure reliable switching performance in your electronic and household projects.
