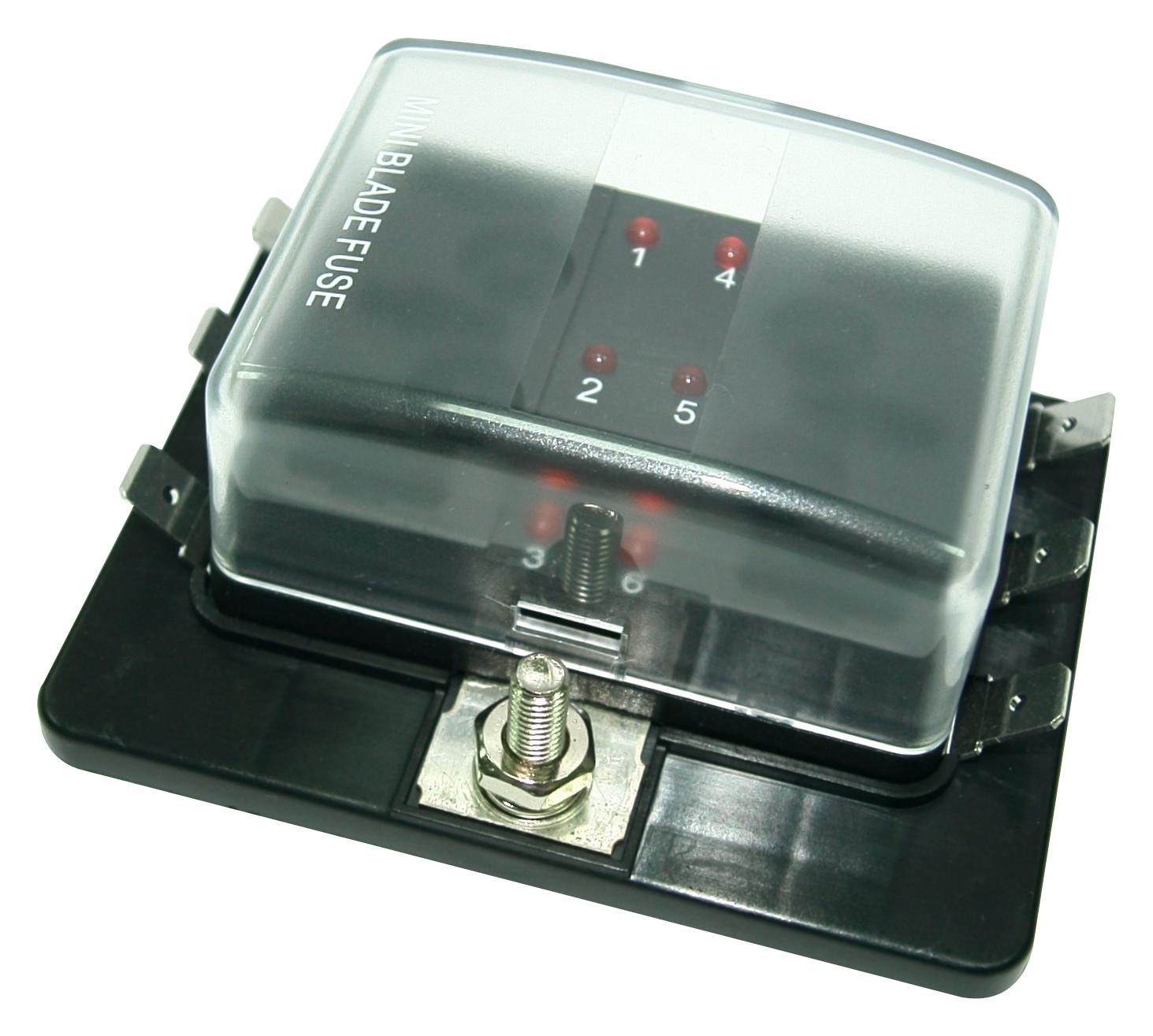

MULTICOMP PRO MC002797 Fuse Block with LED Warning Light
The Mini Blade Fuse Block with LED Warning Light is a versatile 6-position electrical distribution device designed for panel mounting applications. It features quick connect fuse holders compatible with mini blade fuses, with input terminals rated for #10-32 threaded studs at 100A and output circuits capable of handling up to 830A. Built with durable PBT housing and transparent PC cover, it includes LED indicators for circuit status, ensuring easy troubleshooting. Suitable for DC systems up to 32V, this fuse block ensures reliable electrical protection with a compact, easy-to-install design.
MULTICOMP PRO MC002797 Fuse Block with LED Warning Light Specifications:
- Fuse Holder Type: Mini Blade Fuse Holder
- Fuse Holder Terminal: Quick Connect
- Fuse Size: Mini Blade
- No. of Fuses: 6 Fuses
- Input Terminal Rating: #10-32 Threaded Studs (100A Max.)
- Output Terminal Rating: 830A Max. Per Circuit
- Voltage Rating: 32V DC
- Connection Pad: Input Wire Size: #4-6AWG
- Output Wire Size: #12-16AWG
- Housing & Base Material: PBT, UL94V-0, Black
- Cover Material: PC, UL94V-2, Transparent
- Push Button Material: POM, White
- Terminal Material: Copper, Tin Plated
- Torque Rating: 20 in-lb (2.25Nm) Max.
- Mounting Torque Rating: 8 in-lb (0.9Nm) Max.
- Operating Temperature: -20°C to +85°C
Buy the Premier Multicomp Series Fuse Block: MC002797
Enhance your electrical system with this high-quality mini blade fuse block featuring LED warning lights for easy circuit monitoring. Designed for panel mounting, it supports six fuse positions with quick connect terminals for fast installation. Constructed from durable PBT and transparent PC cover, it ensures long-lasting performance in various environments. Suitable for DC systems up to 32V, it provides reliable circuit protection, detailed fuse indication, and robust connection points, making it an ideal choice for automotive, industrial, and marine applications.
Buy Premier Multicomp Series Fuse Block MC002797 now and experience unmatched reliability and performance for your electrical protection needs.
