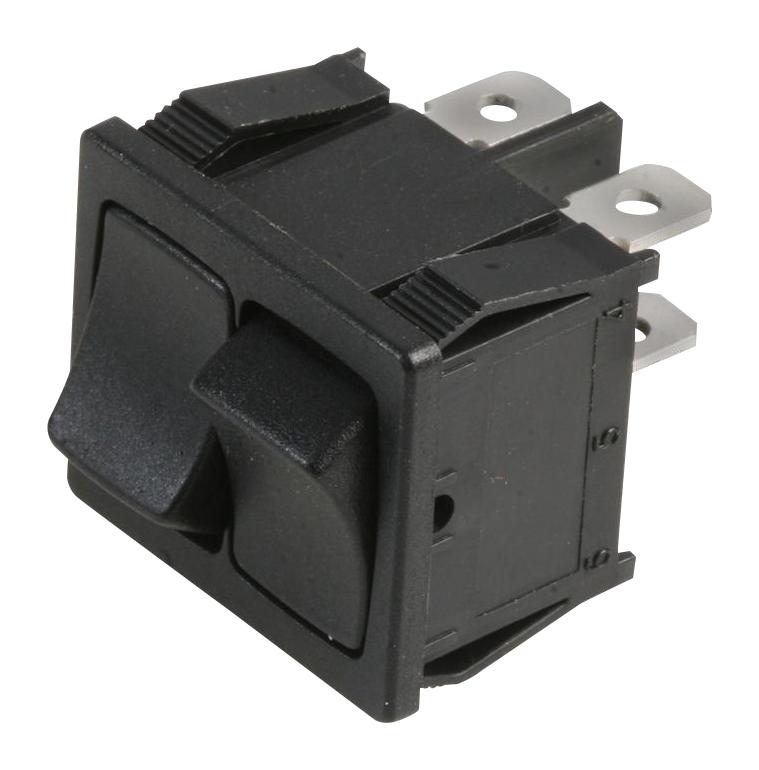

MULTICOMP PRO MCR1333PAA02 Rocker Switch
The non-illuminated rocker switch features dual concave actuators, suitable for panel mounting. It is rated for 10A at 125V AC and 6A at 250V AC, with durable nylon 6.6 construction for the frame and actuator. Designed as a 2P, SPST, on-off switch, it offers reliable switching with low contact resistance and high insulation resistance. Its compact dimensions and quick-connect terminals make installation straightforward. Operating efficiently within -25°C to +85°C, it’s ideal for control panels requiring robust and durable switch components.
MULTICOMP PRO MCR1333PAA02 Rocker Switch Specifications:
- Switch Function: On-Off
- Switch Mounting: Panel
- Switch Terminal: Quick Connect
- Actuator Type: Dual Concave
- Ratings: 10A/125V AC, 6A/250V AC
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 100MO Min. @ 500V DC
- Dielectric Strength: 1500V AC/1 minute
- Operating Temperature: -25°C to +85°C
- Frame Material: Nylon 6.6 (94-2), Black
- Actuator Material: Nylon 6.6 (94-2), Black
- Dimensions: Thickness 0.75-2 mm, Y 19.2-22.2 mm
Buy the Buy multicomp Non-Illuminated Rocker Switch Part Number MCR13-33PAA-02 Online
Purchase the durable non-illuminated rocker switch online today for your control panels. Its dual concave design facilitates easy operation, while the robust nylon construction offers long-term reliability. Rated for 10A at 125V AC and 6A at 250V AC, it’s suitable for a wide range of industrial and equipment applications. The quick connect terminals ensure easy installation, and its operating temperature range from -25°C to +85°C makes it ideal for various environments. Secure your project’s switch needs today with this reliable component.
Order your multicomp Non-Illuminated Rocker Switch MCR13-33PAA-02 today and ensure reliable control with our durable, panel-mount switch components.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCR1333PAA02?
You can click on the BUY or RFQ button to purchase MCR1333PAA02 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCR1333PAA02?
You can download the MCR1333PAA02 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCR1333PAA02?
MULTICOMP PRO
