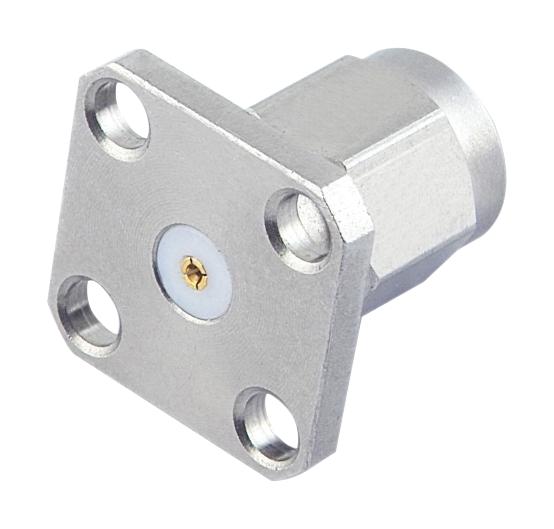

MULTICOMP PRO MC002936 RF SMA Connector
The Straight SMA Square Flange Mount field plug receptacle is designed for high-frequency applications up to 26.5 GHz, featuring a stainless steel body with gold plating and Beryllium Copper contacts for exceptional durability and conductivity. It complies with MIL-STD-348A, offering a reliable connection with a recommended coupling torque of 7 to 10 in-lbs. Suitable for operating temperatures from -55°C to +165°C, this connector ensures excellent electrical performance and environmental resistance, making it ideal for RF, microwave, and communication systems requiring robust, high-performance interconnections.
MULTICOMP PRO MC002936 RF SMA Connector Specifications:
- Connector Body Style: Straight SMA Square Flange Mount
- Electrical Specifications: DC 26.5GHz, Nominal Impedance 50Ω, Voltage Rating 500V Max., VSWR 1.17 Max. @ 18GHz/ 1.21 Max. @ 26.5GHz
- Material Specifications: Bodies in Stainless Steel per JIS SUS-303, Centre Contact in Beryllium Copper per ASTM B196 UNS C17300, Insulation in PTFE per ASTM D1457 and ASTM D1710
- Mechanical Specifications: Interface MIL-STD-348A, Recommended Coupling Torque 7 to 10 in-lbs
- Environmental Specification: Operating Temperature -55°C to +165°C, Dimensions in millimeters and inches, suitable for harsh environments
- Additional Materials: Gasket Silicone Red, Shell Stainless Steel Gold, Washer Stainless Steel, Centre Contact with Gold plating 50μ
- Part Number: MC002936
Buy the Multicomp MC002936 – Reliable RF SMA Connector for Industrial Applications
Order the Multicomp MC002936 RF SMA connector now for high-frequency applications up to 26.5 GHz. Featuring stainless steel construction with gold-plated contacts, it offers durability, excellent electrical performance, and temperature resistance from -55°C to +165°C. Ideal for RF, microwave, and communication systems, this connector provides a secure, reliable connection in harsh conditions. Purchase online today to ensure your systems operate smoothly with high-quality, industry-grade RF interconnects designed for lasting performance and stability in demanding applications.
Get Multicomp MC002936 today—built for precision RF connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002936?
You can click on the BUY or RFQ button to purchase MC002936 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002936?
You can download the MC002936 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002936?
MULTICOMP PRO
