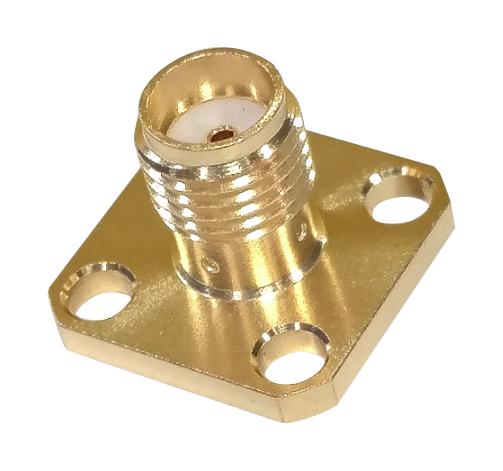

MULTICOMP PRO MC002942 SMA RF Connector
The Straight SMA Square Flange Mount Field Jack Receptacle is a high-frequency connector designed for RF applications, supporting DC to 26.5GHz operation with a maximum voltage rating of 335V. Constructed with stainless steel bodies, Beryllium Copper center contacts, and PTFE insulation, it ensures durability and optimal electrical performance. The connector features MIL-STD-348A interface compliance and operates effectively within -55°C to +165°C temperature ranges. Ideal for precise RF signal transmission in industrial, communication, or testing environments, this receptacle offers reliable performance in demanding conditions.
MULTICOMP PRO MC002942 SMA RF Connector Specifications:
- Body Style: Straight Field Jack Receptacle
- Mounting: Square Flange Mount
- Frequency Range: DC 26.5GHz
- Impedance: 50Ω
- Voltage Rating: 335V Max
- VSWR: 1.21 Max at 26.5GHz
- Material: Bodies made of Stainless Steel per JIS SUS-303
- Centre Contact: Beryllium Copper per ASTM B196 UNS C17300
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Operating Temperature Range: -55°C to +165°C
- Mechanical Interface: MIL-STD-348A
- Connectors Dimensions: Approximately 114 mm with 26 UNE-2A
- Finish: Gold-plated body and center contact, PTFE insulation
- Connector Application: RF signal transmission in industrial and communication sectors
Buy the Multicomp SMA – Reliable RF Connectors for Industrial Applications
Enhance your RF system with the Multicomp SMA RF Connector, featuring a square flange mount, stainless steel construction, and Beryllium Copper contacts supporting up to 26.5GHz. This high-performance connector is designed for demanding industrial, communication, and testing environments, providing excellent signal integrity, durability, and temperature resistance from -55°C to +165°C. With robust materials and MIL-STD-348A interface compliance, it ensures reliable, long-lasting connections for your critical applications. Purchase online today for quality and performance you can trust.
Buy Multicomp SMA square flange mount RF connector now and experience reliable high-frequency performance suitable for industrial and communication applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002942?
You can click on the BUY or RFQ button to purchase MC002942 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002942?
You can download the MC002942 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002942?
MULTICOMP PRO
