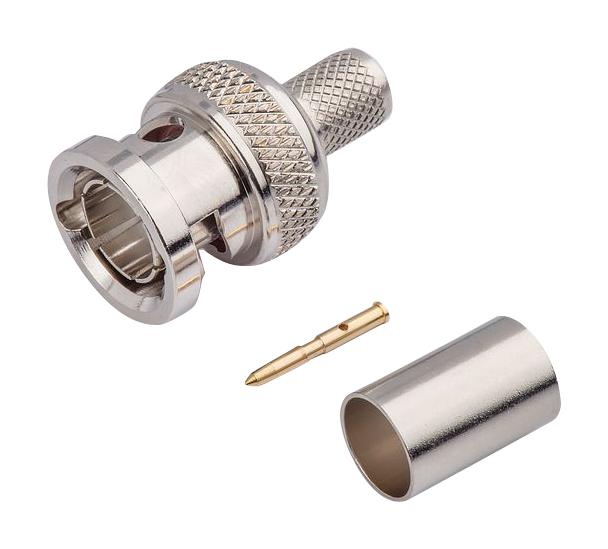

MULTICOMP PRO MC002946 BNC Connector
The Straight BNC Plug for crimp applications is designed for RF signal transmission up to DC-6GHz, featuring a 75Ω impedance for optimal performance. Constructed from durable brass with nickel plating, the connector offers reliable electrical connectivity through crimp and solder methods compatible with Belden 1885A coaxial cable. It complies with MIL-STD-348A interface standards, has a voltage rating of 300V, and operates effectively within temperatures from -55°C to +165°C. Suitable for professional RF, broadcast, and test equipment setups, ensuring consistent, high-quality signal connections.
MULTICOMP PRO MC002946 BNC Connector Specifications:
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Connector Mounting: Cable
- Coaxial Cable Types: Belden 1885A
- Frequency Range: DC-6GHz
- Nominal Impedance: 75Ω
- Voltage Rating: 300V Max.
- VSWR: 1.3 Max.
- Bodies: Brass per JIS-C3604, Nickel Plated
- Centre Contact: Brass per JIS-C3604, Gold Plated
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Crimp Ferrule: Brass per JIS-C2700, Nickel Plated
- Interface: MIL-STD-348A
- Cable Attachment: Outer Crimp / Inner Solder
- Crimp Size: 4.6mm (0.11") HEX
- Operating Temperature: -55°C to +165°C
- Material Finish: Brass Nickel Plated
- Dimensions: Millimeters (Inches) detailed in datasheet
Buy the Buy Premier Farnell BNC Crimp Part Number MC002946 Online
Purchase the Premier Farnell BNC Connector MC002946 online today and experience a reliable, high-performance RF connection solution. Designed for professional applications, this crimp BNC plug supports signals up to 6GHz with a 75Ω impedance for minimal loss and excellent signal clarity. Made from high-quality brass with nickel plating, it ensures durability and corrosion resistance. Ideal for broadcast, test equipment, and RF systems, it offers easy crimping and soldering options. Order now for swift delivery and dependable connectivity in your projects.
Get Premier Farnell BNC Crimp MC002946 today—designed for RF signal integrity and long-lasting durability.
