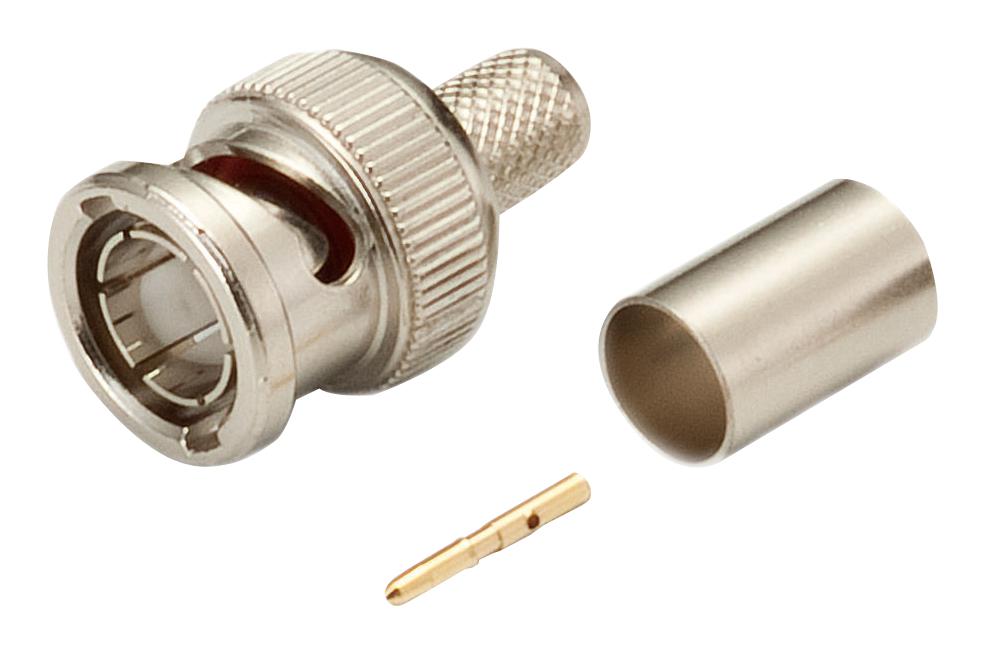

MULTICOMP-PRO MC002947 BNC Connector
The Straight BNC Plug for high-frequency coaxial connections features durable brass construction with nickel plating, PTFE insulation, and a crimp termination for reliable and secure cable attachment. Capable of operating from -65°C to +165°C and supporting frequencies up to 6GHz, it ensures minimal VSWR and maximum voltage rating of 300V. Designed for Belden 1649A cable, this connector offers a robust interface in professional RF applications, ensuring optimal signal integrity and environmental stability in various testing and communication systems.
MULTICOMP-PRO MC002947 BNC Connector Specifications:
- Connector Body Material: Brass Nickel
- Insulation Material: PTFE
- Crimp Ferrule Material: Brass Nickel
- Center Contact Material: Brass Gold
- Cable Type: Belden 1649A
- Frequency Range: DC-6GHz
- Impedance: 75Ω
- Voltage Rating: 300V Max.
- VSWR: 1.3 Max.
- Operating Temperature: -65°C to +165°C
- Connector Style: Straight BNC Plug
- Interface Compliance: MIL-STD-348B
- Crimp Size: 7.1mm (0.28") HEX
- Mechanical Specifications: Outer Diameter approximately 11.90mm (0.469"), Length approximately 23.6mm (0.929") + 0.20mm
- Physical Dimensions: Diameter 8.20mm (0.323"), Length 15.5mm (0.610")
Buy the Multicomp Series BNC Connectivity Cable: MC002947
Purchase the Multicomp Series BNC connector MC002947 online today for secure, high-performance RF connections supporting frequencies up to 6GHz. Designed with durable brass and PTFE insulation, this crimp BNC plug ensures excellent signal integrity and environmental stability. Ideal for professional RF applications, test equipment, and communication systems, it features a 75Ω impedance and a maximum voltage rating of 300V. Simplify your installation process with this precision-engineered connector that guarantees consistent and reliable performance in demanding conditions.
Buy Multicomp MC002947 now and experience reliable RF connections suitable for high-frequency testing and professional communication networks.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002947?
You can click on the BUY or RFQ button to purchase MC002947 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002947?
You can download the MC002947 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002947?
MULTICOMP-PRO
