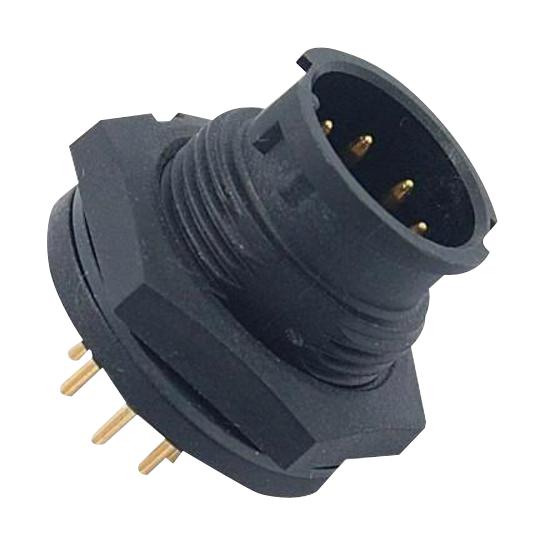

MULTICOMP PRO 2CM3002W03600 Panel Mount Plug
The Panel Mount Plug IP67 from Multicomp is a durable, waterproof connector designed for industrial and outdoor applications. It features a 3-way configuration rated for 16A current, with a maximum panel thickness of 4mm. Constructed with nylon and glass fiber, it includes gold-plated brass pins for reliable electrical contact and an EPDM gasket for sealing. The plug withstands immersion in water up to 1 meter for 30 minutes, and it operates in temperatures from -40°C to +105°C. Certified for hazardous substance compliance, it ensures safety and durability in tough environments.
MULTICOMP PRO 2CM3002W03600 Panel Mount Plug Specifications:
- Waterproof Rate: IP67
- Immersion in 1m water for 30 minutes
- Temperature Range: -40°C to +105°C
- Current Rating: 16A
- Voltage Rating: 1000V AC for one minute
- Material: Nylon + GF Black
- Pin Material: Brass, gold plated over nickel plating
- Panel Thickness: Max 4mm
- Dimensions: Approximate recommended panel cut-out 43/16-28UNS, millimeter dimensions specified
- Certifications: IP67 Waterproof, hazardous substance free compliant
Buy the Buy Multicomp Waterproof Panel Mount Plug Part Number 2CM3002W03600 Online
Purchase the Multicomp waterproof panel mount plug online today and enjoy a reliable, sealed connection ideal for outdoor and industrial applications. With an IP67 rating, it offers robust protection against water and dust ingress, making it perfect for demanding environments. Featuring gold-plated brass pins and a durable nylon body, this 3-way connector ensures high electrical performance and long-term durability. Easy to install with a maximum panel thickness of 4mm, it’s engineered for safety, compliance, and superior performance in harsh conditions.
Get Multicomp waterproof panel mount plug with 16A current rating today—designed for harsh environments and reliable waterproof sealing.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2CM3002W03600?
You can click on the BUY or RFQ button to purchase 2CM3002W03600 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CM3002W03600?
You can download the 2CM3002W03600 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2CM3002W03600?
MULTICOMP PRO
