MULTICOMP-PRO MC002949 BNC Bulkhead Connector
The Straight BNC Bulkhead Jack is a high-performance coaxial connector designed for panel mounting, suitable for DC to 6GHz frequency range. Made of durable brass with a nickel finish, it features a beryllium copper center contact with gold plating, ensuring reliable signal transmission. The solder-type coaxial termination offers a secure connection, with a maximum voltage rating of 500V. Compliant with MIL-STD-348B interface standards, it operates efficiently at temperatures from -55°C to +165°C, making it ideal for demanding RF applications in various environments.
MULTICOMP-PRO MC002949 BNC Bulkhead Connector Specifications:
- Connector Body Style: Straight Bulkhead Jack Receptacle
- Impedance: 75Ω
- Frequency Range: DC 6GHz
- Voltage Rating: 500V Max.
- Connector Mounting: Panel
- Material Bodies: Brass per JIS-C3604, Nickel finish
- Center Contact: Beryllium Copper, Gold plated, ASTM B196 UNS C17300
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Mechanical Interface: MIL-STD-348B
- Operating Temperature: -55°C to +165°C
- Body Finish: Nickel
- Center Contact Finish: Gold
- Dimensions: Millimeters as specified, with mounting hole diameter of 13.2 mm
- Connector type: Solder coaxial, bulkhead mount

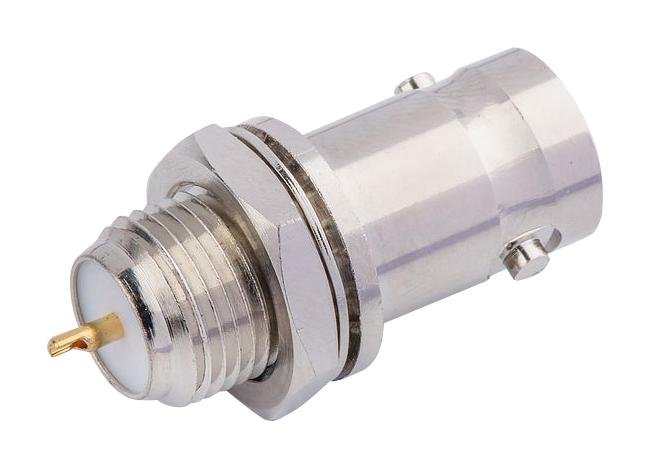

Buy the Buy Avnet Straight BNC Bulkhead Jack Part Number MC002949 Online
Purchase the BNC Bulkhead Connector online for superior RF performance, durable brass construction, and solder-type termination. Designed for panel mounting and capable of operating from DC to 6GHz, this connector features a 75Ω impedance, maximum 500V rating, and MIL-STD-348B interface compliance. Its robust design includes nickel finish and gold-plated center contact, ensuring high reliability and corrosion resistance. Ideal for professional RF systems needing secure, stable connections in challenging environments. Order now for fast delivery and guaranteed quality.
Get Avnet BNC Bulkhead Jack MC002949 today—built for RF reliability and long-lasting durability in demanding applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002949?
You can click on the BUY or RFQ button to purchase MC002949 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002949?
You can download the MC002949 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002949?
MULTICOMP-PRO
