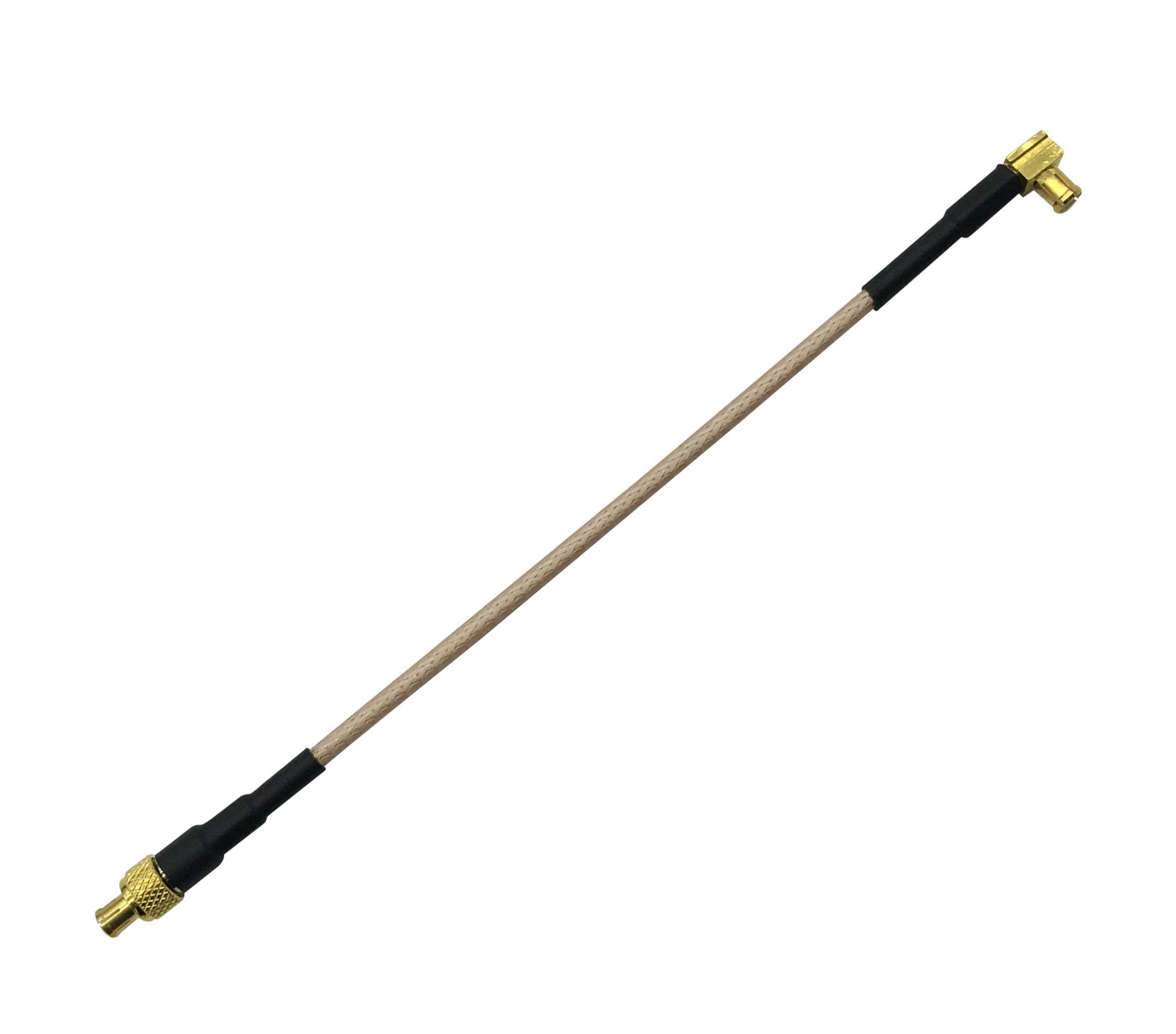

MULTICOMP PRO MC002986 RF Cable Assembly
The RF Cable Assembly features an MCX right-angle plug connected to a straight plug, designed for high-frequency applications up to 6GHz. Crafted with RG-316 coaxial cable, it offers excellent impedance matching at 50 ohms, and provides outstanding electrical performance including low VSWR of 2.13 at 2GHz and high return loss. The assembly's durable brass and beryllium copper contacts are gold plated, combined with PTFE insulators, ensuring reliable connections and longevity through 500 mating cycles. The cable's compact 132mm length makes it ideal for space-constrained setups requiring consistent signal integrity.
MULTICOMP PRO MC002986 RF Cable Assembly Specifications:
- Cable Length: 132mm / 5.2"
- Connector Type A: MCX Right Angle Plug
- Connector Type B: MCX Straight Plug
- Cable Type: RG-316
- Impedance: 50 ohms
- Frequency Range: up to 6GHz
- VSWR: 2.13dB@2GHz
- Return Loss: 13.979dB@2GHz
- Voltage Rating: 250V RMS
- Insulation Resistance: 1,000MQ Min. Initial, 500MQ Min. after conditioning
- Dielectric Withstanding Voltage: 750V AC / 1 min. no breakdown or flashover
- Contact Resistance: Centre Contact: 5mΩ Max., Outer Contact: 1mΩ Max.
- Mating Durability: 500 cycles
- Body Material: Brass/Beryllium Copper, Gold Plated
- Centre Contact Material: Brass, Gold Plated
- Insulating Material: PTFE
- RoHS Compliant
Buy the Multicomp Series RF Cable Assembly: MCX R/A Plug Straight Plug MC002986
Enhance your RF communication setup with this high-quality RF Cable Assembly. Featuring an MCX right-angle and straight plug, RG-316 cable, and durable gold-plated contacts, it delivers exceptional performance up to 6GHz. Its compact 132mm length, high insulation resistance, and multiple mating cycles ensure long-lasting reliability. Perfect for space-constrained equipment, this assembly provides stable signal transmission for professional, industrial, or communication applications. Purchase online today for secured, seamless RF connectivity with lasting durability.
Buy multicomp series RF cable assembly MC002986 now and experience unmatched reliability and performance in RF signal connectivity.
