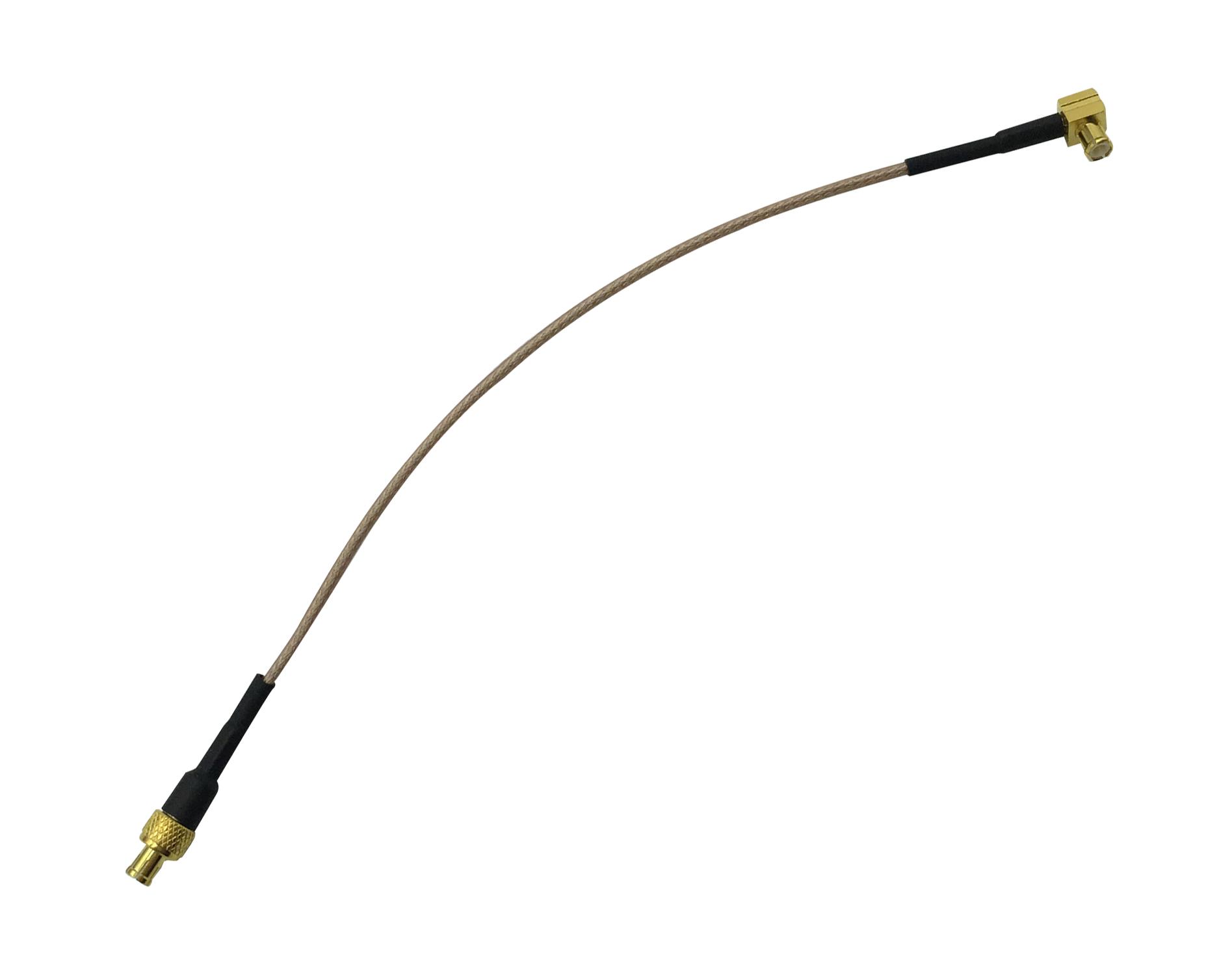

MULTICOMP PRO MC002987 RF Cable Assembly
This RF cable assembly features an MCX right-angle plug and a straight plug with RG-178 cable, designed for high-frequency applications up to 3GHz. It offers reliable impedance matching, low VSWR of 1.5 at 1.575GHz, and excellent return loss, making it suitable for precision RF signal transmission. The assembly measures 165mm (6.5 inches) in length and features gold-plated brass contacts for enhanced conductivity and durability. Its PTFE insulation provides excellent dielectric properties, ensuring stable performance in demanding environments. Suitable for test and measurement, communications, and electronics testing, this assembly ensures secure connections with snap-on coupling and can withstand 500 mating cycles.
MULTICOMP PRO MC002987 RF Cable Assembly Specifications:
- Cable Length: 165mm / 6.5 inches
- Connector Type A: MCX Right Angle Plug
- Connector Type B: MCX Straight Plug
- Cable Type: RG-178
- Impedance: 50 Ohms
- Frequency: Up to 3GHz
- VSWR: 1.5 @ 1.575GHz
- Return Loss: 13.979dB @ 1.575GHz
- Voltage Rating: 170V RMS
- Insulation Resistance: 1,000MQ Min. initial, 500MQ min. after conditioning
- Dielectric Withstanding Voltage: 500V AC / 1 min.
- Contact Resistance: Centre Contact: 5mΩ Max., Outer Contact: 1mΩ Max.
- Durability: 500 mating cycles
- Body Material: Brass/Beryllium Copper, Gold Plated
- Centre Contact Material: Brass, Gold Plated
- Insulating Material: PTFE
- RoHS: Compliant
Buy the Multicomp Series RF Cable: MCX R/A Plug - Straight Plug MC002987
Purchase the Multicomp RF cable assembly featuring an MCX right-angle plug and a straight plug with RG-178 cable. Designed for high-frequency signals up to 3GHz, it offers low VSWR, excellent return loss, and durable construction with gold-plated contacts. Measuring 165mm in length, this assembly ensures secure, low-loss connections suitable for testing, communications, and electronic equipment. Its PTFE insulation guarantees stability in demanding environments. Buy online now to ensure high-performance RF connectivity for your professional or hobbyist projects, backed by reliable quality and easy installation.
Get Multicomp MC002987 today—built for precise high-frequency transmission and enjoy reliable, durable connections for your RF applications.
