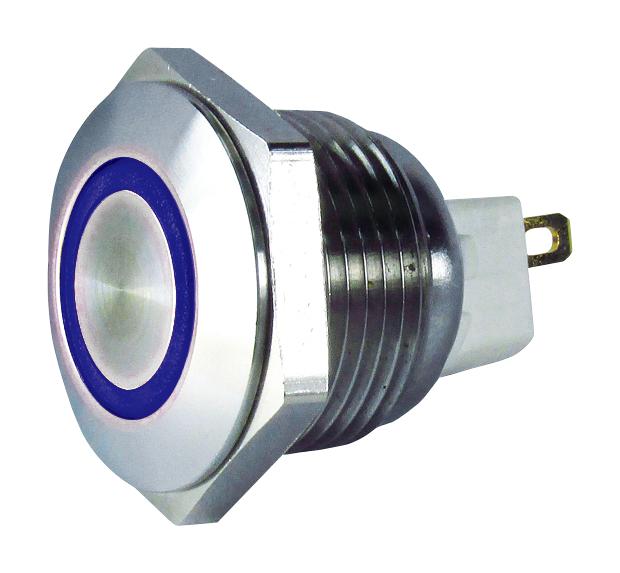

MULTICOMP PRO MC010893 Vandal Resistant Switch
The Illuminated Vandal Resistant Switch is a high-durability, flush-mount switch designed for indoor and outdoor applications. It features gold-plated contacts, stainless steel material, and LED illumination in green, red, or blue. Suitable for panels with 16mm hole diameter, this switch offers various mount types like flush, prominent, and domed. It supports UL 5OE Type 4X protection, operating at 48V DC with a rated current of over 100mA. Key features include dielectric strength up to 2000V, high mechanical and electrical lifespan, and vibration and shock resistance for demanding environments.
MULTICOMP PRO MC010893 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC / min between live and ground; 1000V AC / min between terminals
- Contact Resistance: 50mQ Max. (Initial)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: 200 m/S? operating, 500 m/S? damage
- Mechanical Life: 1,000,000 momentary operations, 250,000 maintained
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Multicomp Series Vandal Resistant Switch: MC010893
Order the durable and high-performance vandal resistant switch online today. Designed for harsh environments, it features stainless steel construction, LED illumination options in green, red, and blue, and offers various mounting types such as flush, prominent, and domed. Suitable for indoor and outdoor applications, it supports a rated voltage of 48V DC and a current over 100mA. With high dielectric strength, long mechanical and electrical lifespan, and IP67 protection, this switch ensures reliable operation in demanding conditions.
Get Multicomp Series Vandal Resistant Switch MC010893 today—built for precision, outdoor durability, and long-lasting reliability.
