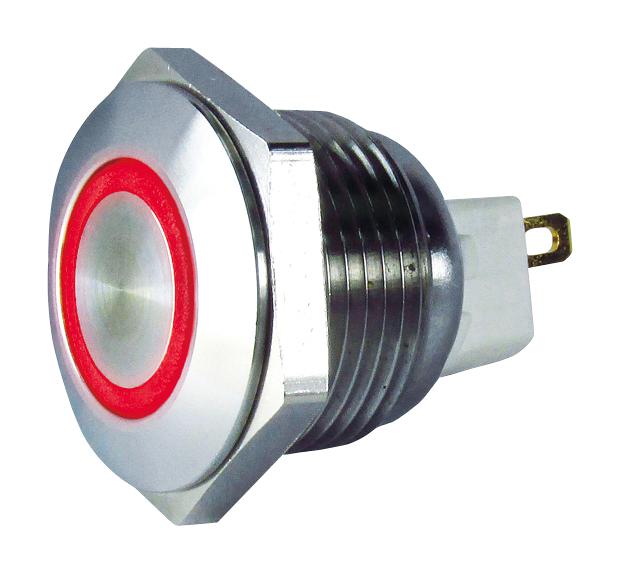

MULTICOMP PRO MC010895 Vandal Resistant Switch
This vandal resistant illuminated switch features a stainless steel construction with a durable, high-quality design suitable for indoor and outdoor use. It offers three top types: flush, prominent, and domed, with gold-plated contact blocks for enhanced conductivity. Rated for 48V DC and 12V LED voltage, it includes various LED colours such as green, red, and blue. The switch has a 1NO operation, with a dielectic strength of 2000V AC between live parts and ground. Suitable for panel thicknesses of 0.5 to 3 mm, it ensures reliable performance in demanding environments, featuring a degree of protection of P67, and solder terminal connections.
MULTICOMP PRO MC010895 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC between live part and ground, 1000V AC between terminals
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 100MΩ min (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1°C to 50°C
- Vibration Resistance: 5 to 55Hz, 0.5mm amplitude
- Shock Resistance: 200 m/s² operating, 500 m/s² damage
- Mechanical Life: 1,000,000 momentary, 250,000 maintained
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Panel Thickness: 0.5~3mm
Buy the Buy multicomp Illuminated Vandal Resistant Switch Part Number MC010895 Online
Purchase the multicomp vandal resistant illuminated switch online for reliable performance in industrial and outdoor applications. Its stainless steel body, multiple mounting options including flush, prominent, and domed types, ensure versatility and durability. With LED indicators in green, red, and blue, rated at 48V DC and 12V LED voltage, it offers excellent electrical and dielectric performance. Suitable for panel thicknesses of 0.5 to 3 mm, it provides high durability, with up to one million mechanical operations, making it ideal for harsh environments.
Buy multicomp MC010895 now and experience unmatched reliability and performance in demanding environments with durable, vandal resistant illumination.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010895?
You can click on the BUY or RFQ button to purchase MC010895 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010895?
You can download the MC010895 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010895?
MULTICOMP PRO
