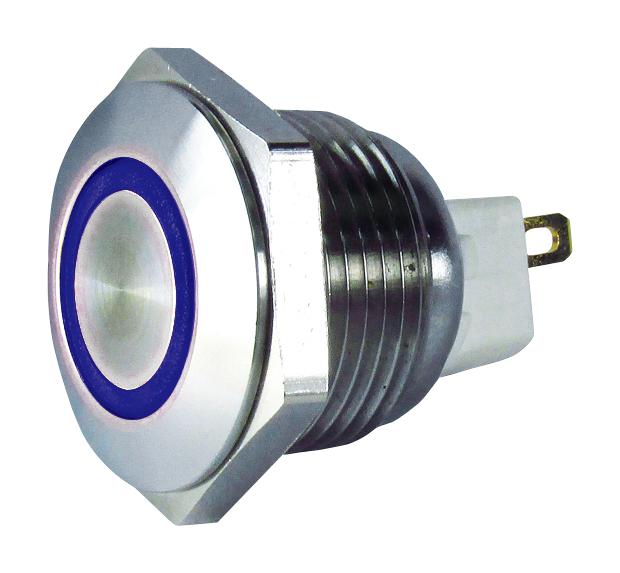

MULTICOMP PRO MC010896 Vandal Resistant Switch
This vandal resistant illuminated switch features a stainless steel body with gold-plated contacts, available in flush, prominent, and domed top options. It is rated for 48V DC with a maximum current of 100mA, suitable for indoor and outdoor use with UL5OE Type 4X protection. The switch has a green, red, or blue LED indicator operating at 12V, with a dielectric strength of 2000V AC between live parts and ground. It supports a mechanical life of 1,000,000 operations and an electrical life of 50,000, ensuring durability in harsh environments.
MULTICOMP PRO MC010896 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2,000V AC between live part and ground, 1,000V AC between terminals
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. at 500V DC
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude 0.5mm
- Shock Resistance: Damage limit 500 m/s², Operating limit 200 m/s²
- Mechanical Life: 1,000,000 momentary, 250,000 maintained
- Electrical Life: 50,000
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Multicomp Series Vandal Resistant Switch: MC010896
Purchase the durable multicomp vandal resistant illuminated switch online today to enhance your industrial or outdoor control systems. Featuring a stainless steel body, multiple mounting options, bright LED indicators in green, red, or blue, and a high IP67 protection rating, this switch offers long-lasting performance under harsh conditions. Its robust design supports up to 1 million mechanical operations and 50,000 electrical cycles, making it ideal for demanding applications requiring reliable, vibration, and shock resistance. Order now for fast delivery and quality assurance.
Order your multicomp Series Vandal Resistant Switch MC010896 today and ensure reliable high-performance switching in challenging environments. Durable, protected, and with a bright LED indicator, this switch is perfect for industrial control panels and outdoor equipment environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010896?
You can click on the BUY or RFQ button to purchase MC010896 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010896?
You can download the MC010896 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010896?
MULTICOMP PRO
