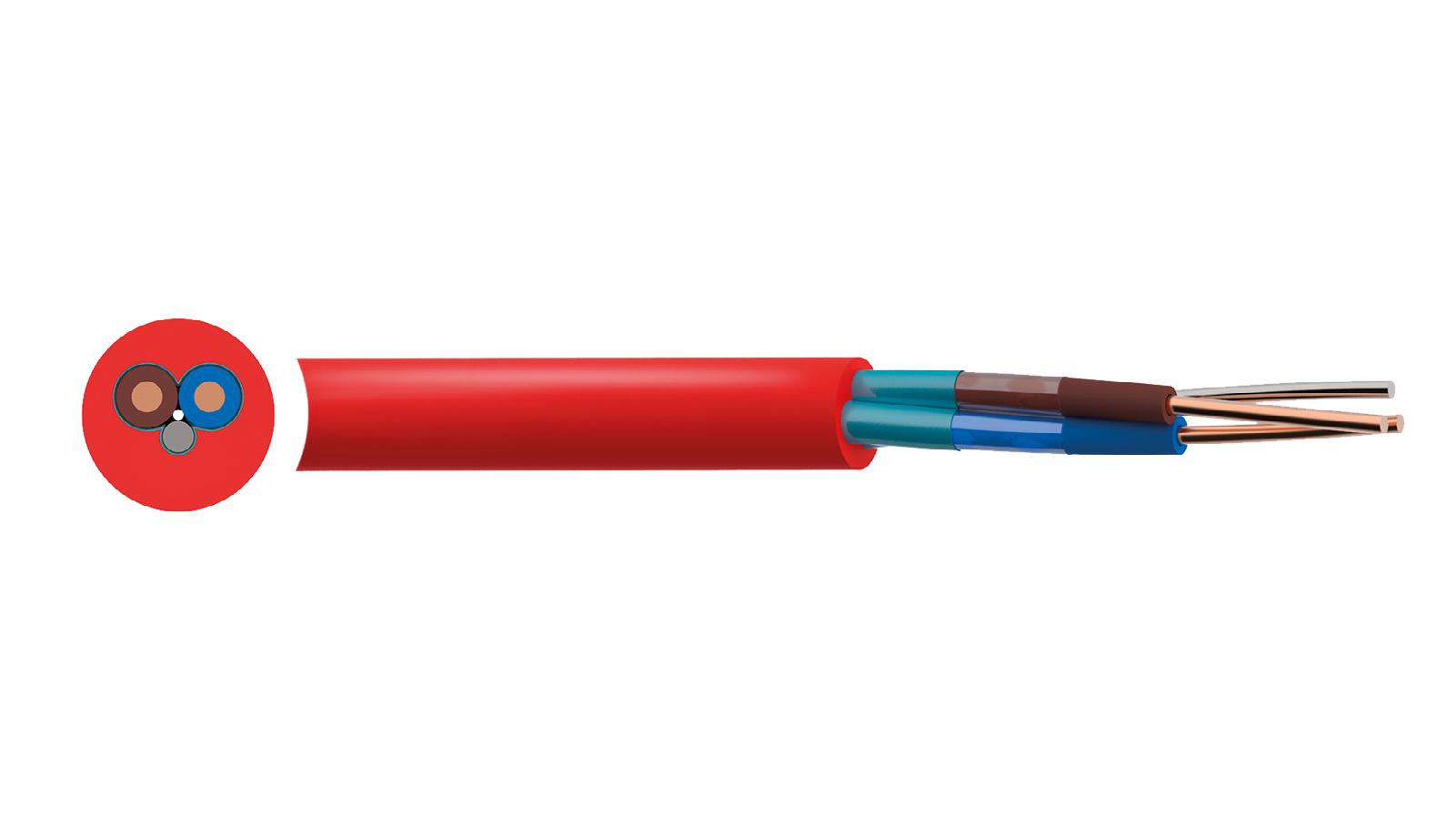

MULTICOMP-PRO MP002410 fire resistant multicore cable
This fire-resistant multicore cable features solid conductors with high-performance silicone rubber insulation, designed for fire alarm, emergency lighting, and security systems. Rated at 300V / 500V with a temperature range of -40°C to +90°C, it maintains operation during fire conditions and complies with standards like BS 7629-1 and BS EN/IEC 60754-1/2. The cables are RoHS compliant, with low smoke zero halogen (LSZH) outer sheaths in red and white. Suitable for various wiring configurations, it offers robust electrical characteristics including resistance, current capacity, and voltage drop specifications for safe, reliable performance.
MULTICOMP-PRO MP002410 fire resistant multicore cable Specifications:
- Voltage Rating: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Minimum Bending Radius: 6 x overall diameter
- Conductor: Class 1 Solid Conductor, 1.5mm² to 2.5mm²
- Insulation: High-performance fire resistant silicone rubber
- Outer Sheath: LSZH, Red & White
- Core Identification: Blue, Brown, and Bare Earth or Black, Grey for 3-core, and additional colors for 4-core
- Resistance at 20°C: 12.1 μΩ/m for 1.5mm², 7.41 μΩ/m for 2.5mm²
- Current Capacity: 24A for 1.5mm², 33A for 2.5mm² for 2-core cables
- Voltage Drop in Cable Trays: 30 mV/A/m for 1.5mm², 18 mV/A/m for 2.5mm²
- De-Rating Factors: 1.04 at 25°C, decreasing at higher temperatures up to 60°C
Buy the Buy Multicomp Fire Resistant Multicore Cable Part Number MP002410 Online
Order the Multicomp fire-resistant multicore cable MP002410 online today and benefit from high-quality silicone insulation, robust build, and standards-compliant safety features. Perfect for fire alarm systems, emergency lighting, and voice alarm circuits, these cables are designed to operate safely during fire conditions. With a flexible design, easy installation features, and excellent electrical characteristics, purchasing online guarantees quick access to reliable wiring solutions for critical safety applications, ensuring compliance and peace of mind for your projects.
Buy Multicomp fire-resistant multicore cable MP002410 now and ensure safe, reliable fire alarm and emergency lighting installations with high performance silicone insulation.
