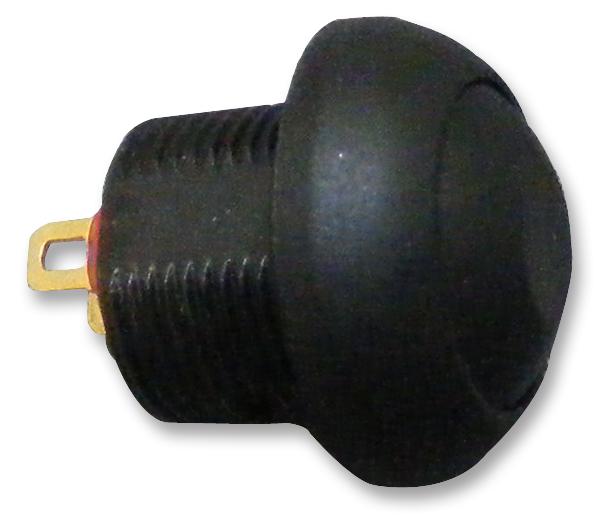

MULTICOMP PRO MCPAS6B2M1CE2 Pushbutton Switch
The MCPAS6B2M1CE2 is a black SPST pushbutton switch designed for industrial and electronic applications. It features solder lug terminals, a flat plunger top for marking, and a threaded bushing for secure panel mounting. With a contact bounce time of approximately 10ms and a maximum torque of 1.5Nm, it ensures reliable operation under demanding conditions. The switch operates with a force of 2 to 5N, supports panel thicknesses from 0.8mm to 4mm, and complies with RoHS standards. Ideal for control panels, automation, and machinery, it guarantees durability and high performance.
MULTICOMP PRO MCPAS6B2M1CE2 Pushbutton Switch Specifications:
- RoHS Compliant
- Max. current/voltage with resistive load: 400mA 32V AC, 100mA 50V DC, 125mA 125V AC
- Initial contact resistance: 50mΩ
- Insulation resistance: 1GΩ at 500V DC
- Dielectric strength: 1,000V AC rms
- Electrical life at full load: 500,000 cycles
- Panel Thickness: 0.8mm to 1.8mm or 1.5mm to 4mm depending on model
- Total travel: 0.138 inches (3.5mm)
- Operating force: 2N to 5N
- Maximum torque: 1.5 Nm
- Contact bounce: approximately 10ms
- Mechanical life: 1,000,000 cycles
- Maximum soldering temperature: 260°C for 5 seconds
- Mounting: Snap-in or threaded bushing
- Features: Flat plunger top, anti-rotation bushing, solder lug terminals
Buy the Multicomp PRO MCPAS6B2M1CE2 – Reliable Pushbutton Switch for Industrial Applications
Discover the reliable performance of the Multicomp PRO MCPAS6B2M1CE2 pushbutton switch, featuring solder lug terminals, flat marking surface, and secure threaded bushing. Ideal for industrial control panels, automation, and machinery, this switch offers excellent durability, RoHS compliance, and long electrical and mechanical life. Easy to install with snap-in or threaded mounting options, it supports a wide range of panel thicknesses from 0.8mm to 4mm. Upgrade your project with this high-quality, dependable switch designed for demanding applications, available for quick online purchase with fast delivery.
Order your Multicomp PRO MCPAS6B2M1CE2 pushbutton switch today and ensure durable, high-performance control for your industrial and automation projects.
