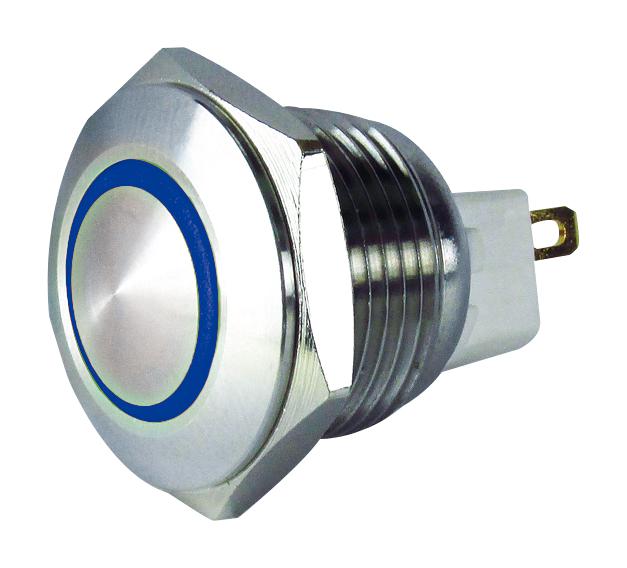

MULTICOMP PRO MC010899 Vandal Resistant Switch
This vandal resistant illuminated switch offers robust performance for industrial and outdoor applications, featuring a stainless steel finish and UL94OE Type 4X protection for indoor and outdoor use. Equipped with gold-plated contacts, it provides reliable operation with a Incomes 1NO contact configuration. The switch is available in various top types — flush, prominent, and domed — with LED indicators in green, red, or blue, and supports panel thicknesses from 0.5 to 3mm. Designed for durability, it has high dielectric strength, vibration, shock resistance, and a mechanical life of 1,000,000 cycles. Ideal for control panels requiring vandal resistance and visibility.
MULTICOMP PRO MC010899 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC between live and ground, 1000V AC between terminals
- Contact Resistance: 50mΩ Max (initial)
- Insulation Resistance: 100MQ Min (500V DC)
- Operating Humidity: 45% to 85% RH (no condensation)
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1°C to +50°C
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: 200m/sec to 500m/sec damage limits
- Mechanical Life: 1,000,000 (momentary), 250,000 (maintained)
- Electrical Life: 50,000
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Buy multicomp Vandal Resistant Switch Part Number MC010899 Online
Order the multicomp vandal resistant illuminated switch MC010899 online today for exceptional durability and reliable performance in demanding environments. Perfect for outdoor or industrial control panels, this switch features a stainless steel finish, gold-plated contacts, and multiple top options—flush, prominent, and domed—plus LED indicators available in green, red, and blue. Designed to withstand vibrations, shocks, and harsh conditions with UL94OE Type 4X protection, it ensures long-lasting functionality and easy installation with solder terminals. Enhance your control systems now and benefit from quick online delivery and expert support.
Buy multicomp MC010899 now and experience unmatched durability and visibility in vandal resistant control solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010899?
You can click on the BUY or RFQ button to purchase MC010899 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010899?
You can download the MC010899 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010899?
MULTICOMP PRO
