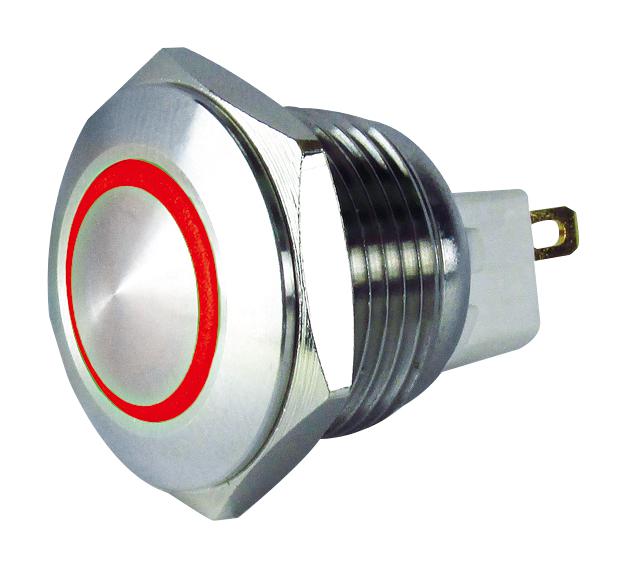

MULTICOMP PRO MC010901 Vandal Resistant Switch
This vandal resistant illuminated switch features a stainless steel body, suitable for indoor and outdoor applications with a degree of protection P67. It includes gold plated contacts, a LED indicator with adjustable colors (green, red, blue), and various configurations such as flush, prominent, and domed tops. The switch operates with a rated voltage of 48V DC, rated current over 100mA, and supports high mechanical and electrical durability with a life span of hundreds of thousands of operations. Designed for panel mounting with a 16mm hole, it ensures reliable operation under vibration and shock conditions, making it ideal for demanding industrial environments and security systems.
MULTICOMP PRO MC010901 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC between live parts and ground, 1000V AC between terminals
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, 0.5mm amplitude
- Shock Resistance: 200 to 500 m/s²
- Mechanical Life: 1,000,000 momentary, 250,000 maintained
- Electrical Life: 50,000 cycles
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Buy multicomp Vandal Resistant Switch Part Number MC010901 Online
Order the multicomp vandal resistant illuminated switch online today to ensure reliable operation in harsh environments. Featuring a stainless steel body, LED indicator with various color options, and multiple mounting styles, this switch is ideal for security systems and industrial controls. It withstands vibration, shock, and outdoor conditions with IP67 protection, supporting high durability for extensive use. Easy to install with a 16mm mounting hole, it guarantees long-lasting performance and safety in demanding applications, making it a top choice for professionals.
Buy multicomp vandal resistant switch MC010901 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010901?
You can click on the BUY or RFQ button to purchase MC010901 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010901?
You can download the MC010901 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010901?
MULTICOMP PRO
