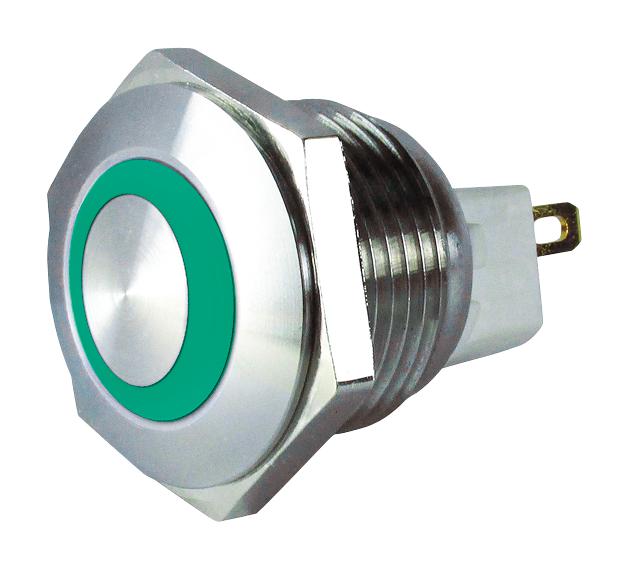

MULTICOMP PRO MC010906 Vandal Resistant Switch
The illuminated vandal resistant switch is designed for outdoor and indoor applications, featuring a stainless steel body, gold-plated contacts, and a panel cut-out of 16mm. It offers UL5OE Type 4X protection, suitable for harsh environments. The switch operates with a rated voltage of 48V DC and a current above 100mA, with LED indicators available in green, red, or blue. It provides durable mechanical and electrical lifespan, with dielectric strength up to 2,000V AC. Ideal for industrial controls, security systems, and vandal-prone installations.
MULTICOMP PRO MC010906 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2,000V AC / min between live part and ground
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1°C to 50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200 m/S² operating, 500 m/S² damage
- Mechanical Life: 1,000,000 momentary, 250,000 maintained
- Electrical Life: 50,000
- Degree of Protection: P67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Buy multicomp Illuminated Vandal Resistant Switch Part Number MC010906 Online
Order the durable illuminated vandal resistant switch online today. Designed for outdoor and harsh environments, with stainless steel construction and gold-plated contacts for longevity. Features include a 16mm panel cut-out, LED indicators in green, red, or blue, high dielectric strength, and a robust IP67 protection rating. Suitable for industrial, security, and control applications, ensuring dependable operation under demanding conditions. Purchase now for reliable performance and smooth installation.
Get multicomp MC010906 today—built for vandal resistance, durability, and reliable outdoor usage.
