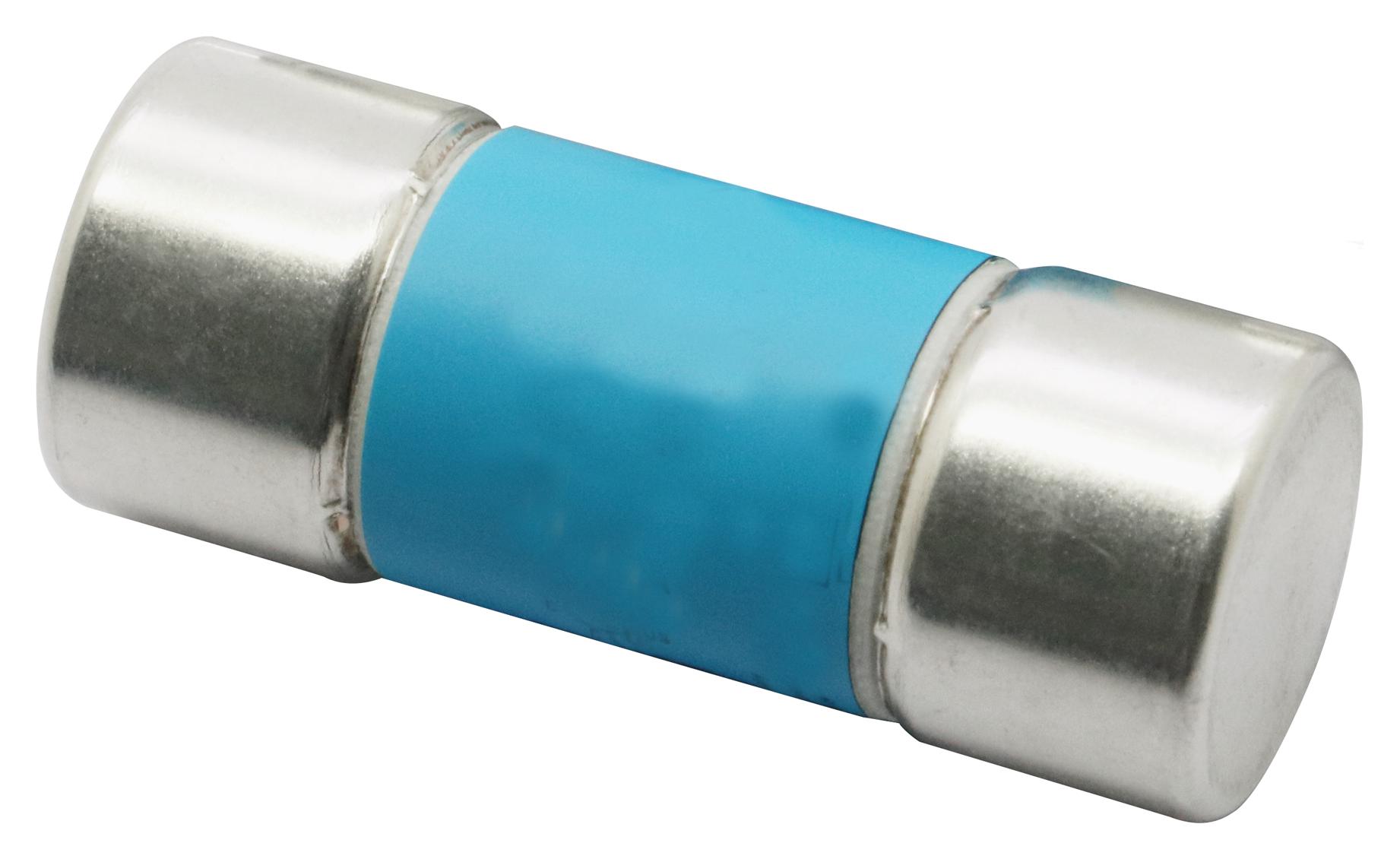

MULTICOMP PRO MP006254 PV Fuse
The gPV Cartridge Fuse is a high-power protection device designed for photovoltaic applications, rated at 1500V DC and available in current ratings from 20A to 45A. It features a glass-fiber body with silver-plated caps for enhanced conductivity and durability. The fuse complies with UL 248-19 and IEC 60269-6 standards and is equipped with holders suitable for DIN rail mounting. Its fast-acting nature with a time constant of 1ms to 3ms ensures reliable circuit protection in demanding solar power systems, effectively preventing damage from overcurrents.
MULTICOMP PRO MP006254 PV Fuse Specifications:
- Voltage Rating: 1500V DC
- Rated Current: 20A to 45A
- Breaking Capacity: 10 kA at 1500V DC, 10 kA at 1300V DC for specific currents
- Time Constant: 1ms to 3ms
- Body Material: Glass-fiber with silver-plated caps
- Standards: UL 248-19, IEC 60269-6
- Mounting: BH400, BH401 holders for DIN rail
- Compliance: RoHS
- Dimensions: 22mm x 58mm
- Pre-Arcing Dissipation: 4.2W to 7.2W depending on current
- Approval: UL listed (File: E490190)
Buy the Multicomp Series PV Fuse: MP006254
Secure your solar power systems with the high-voltage PV fuse designed for demanding photovoltaic applications. Rated at 1500V DC and available in currents from 20A to 45A, this fuse provides fast-acting protection with a time constant of 1ms to 3ms. Its durable glass-fiber body and silver-plated caps ensure longevity and efficient conductivity. UL and IEC certified, it is compatible with DIN rail holders for easy installation. Invest in this reliable fuse today to prevent circuit damage and enhance overall system safety.
Order your Multicomp Series PV Fuse MP006254 today and equip your solar systems with reliable overcurrent protection for high-voltage applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006254?
You can click on the BUY or RFQ button to purchase MP006254 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006254?
You can download the MP006254 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006254?
MULTICOMP PRO
