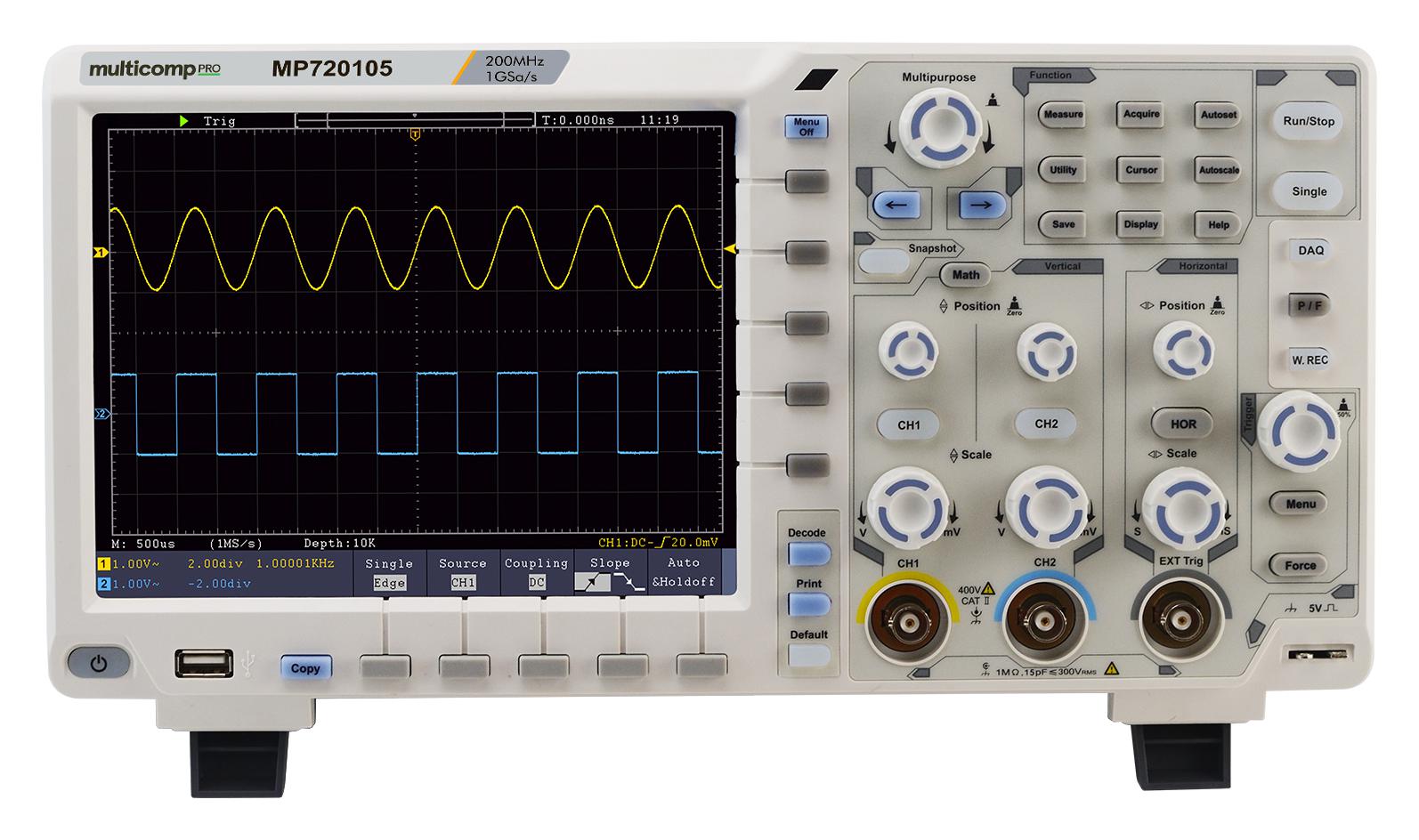

MULTICOMP PRO MP720105US Dual Channel Digital Storage Oscilloscope

The MP720105 from Multicomp Pro is a compact, high-performance digital storage oscilloscope with a 200MHz bandwidth and two channels. It features a 1GS/s sampling rate, 8-bit vertical resolution, and an 8-inch high-resolution color LCD display. The device includes a decoding kit supporting RS232, SPI, I2C, and CAN protocols, along with multiple input coupling options (DC, AC, GND). It offers a maximum waveform refresh rate of 75,000 waveforms per second, low background noise with vertical sensitivity ranging from 1mV/div to 10V/div, and extensive trigger and decoding functionalities. Additional features include multi-interface integration with USB host and device ports, LAN, AUX, and PictBridge support. Its ultra-thin design enables space-saving installation. The scope supports SCPI and LabVIEW, with a horizontal scale from 1 ns/div to 1000 s/div, and operates in auto, normal, and single trigger modes. Dimensions are 340mm x 177mm x 90mm, and it weighs 2.6kg. The package includes the oscilloscope, US mains leads, two probes, a probe adjust tool, USB cable, operating instructions, and a CD-ROM.

View MP720105USDatasheet [pdf]

Buy the Multicomp Series Oscilloscope: 200MHz Dual Channel MP720105

Experience detailed signal capture and analysis with the Multicomp dual-channel digital storage oscilloscope, featuring 200MHz bandwidth, 1GS/s sampling, and an easy-to-read 8-inch LCD. Designed for engineers and technicians, it offers extensive triggering, waveform math, and data storage features. With multiple input options, protocol decoding, and connectivity via USB and LAN, the scope ensures precise measurements across various applications. Compact and lightweight at 2.6kg, it comes with accessories, making it ideal for lab and field use.

Get Multicomp MP720105 today—built for precision, reliability, and versatile signal analysis.
