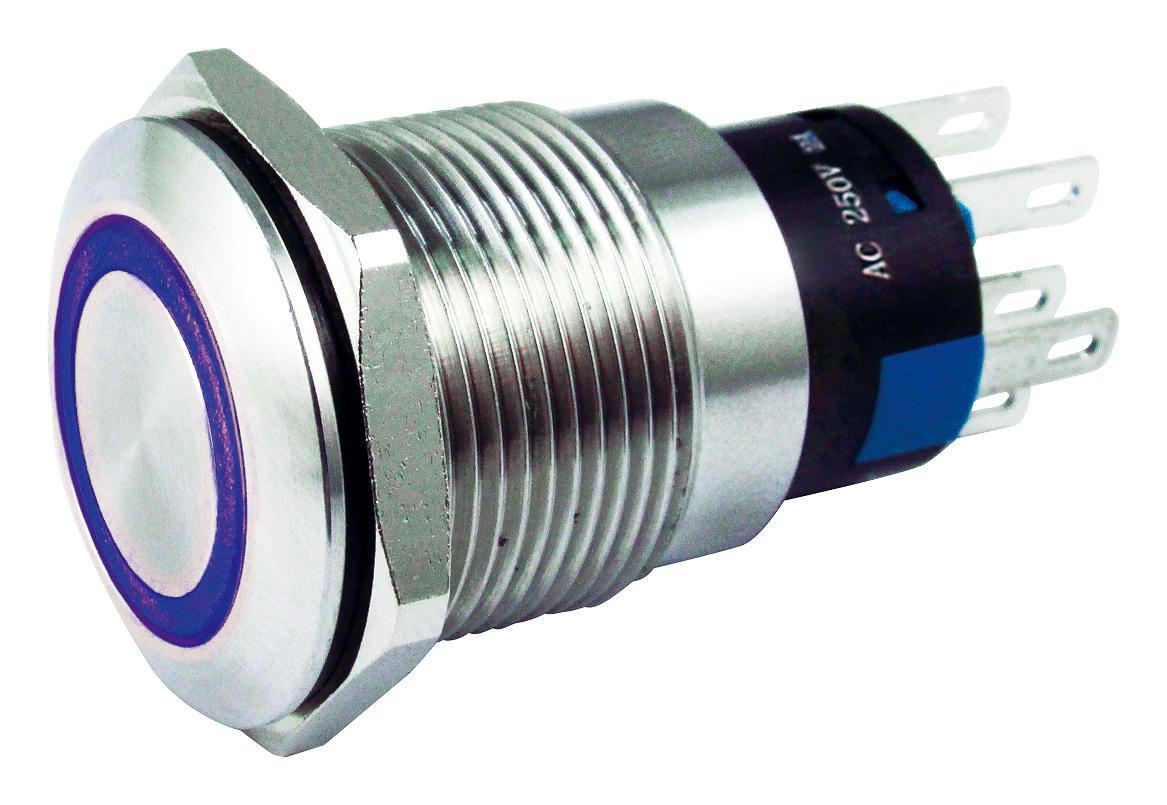

MULTICOMP PRO MC010911 Vandal Resistant Switch
This vandal resistant switch features a durable stainless steel body, illuminated LED indicators in red, green, and blue, and operates with a choice of contact configurations including NO and NC contacts. Designed for harsh environments, it offers excellent dielectric strength, vibration, and shock resistance, making it ideal for industrial control panels, outdoor installations, and security systems. Available in both momentary and maintained operation modes, the switch supports IP67 ingress protection, ensuring reliable performance even in challenging conditions. Ideal for applications requiring visibility and durability, this switch combines robust construction with versatile functionality.
MULTICOMP PRO MC010911 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colour: Red / Green / Blue
- Switch Operation: Momentary / Maintained
- Contact Configuration: 1NO + 1NC / 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 200 m/S²; Operating limits: 500 m/S²
- Mechanical Life: 1,000,000 operations (Momentary), 250,000 (Maintained)
- Electrical Life: 50,000 operations
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Multicomp Series Vandal Resistant Switch: MC010911
Purchase the robust vandal resistant switch online today to ensure secure and reliable operation for industrial and outdoor applications. Designed with a stainless steel body and IP67 protection, this switch features illuminated LEDs in red, green, and blue, enhancing visibility in challenging conditions. Available in momentary and maintained versions, it supports a variety of contact configurations including NO and NC contacts, making it versatile for various control systems. Its high dielectric strength, shock, and vibration resistance make it suitable for demanding environments, ensuring long service life and dependable performance.
Get multicomp Series vandal resistant switch MC010911 today—built for durability and reliable operation in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010911?
You can click on the BUY or RFQ button to purchase MC010911 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010911?
You can download the MC010911 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010911?
MULTICOMP PRO
