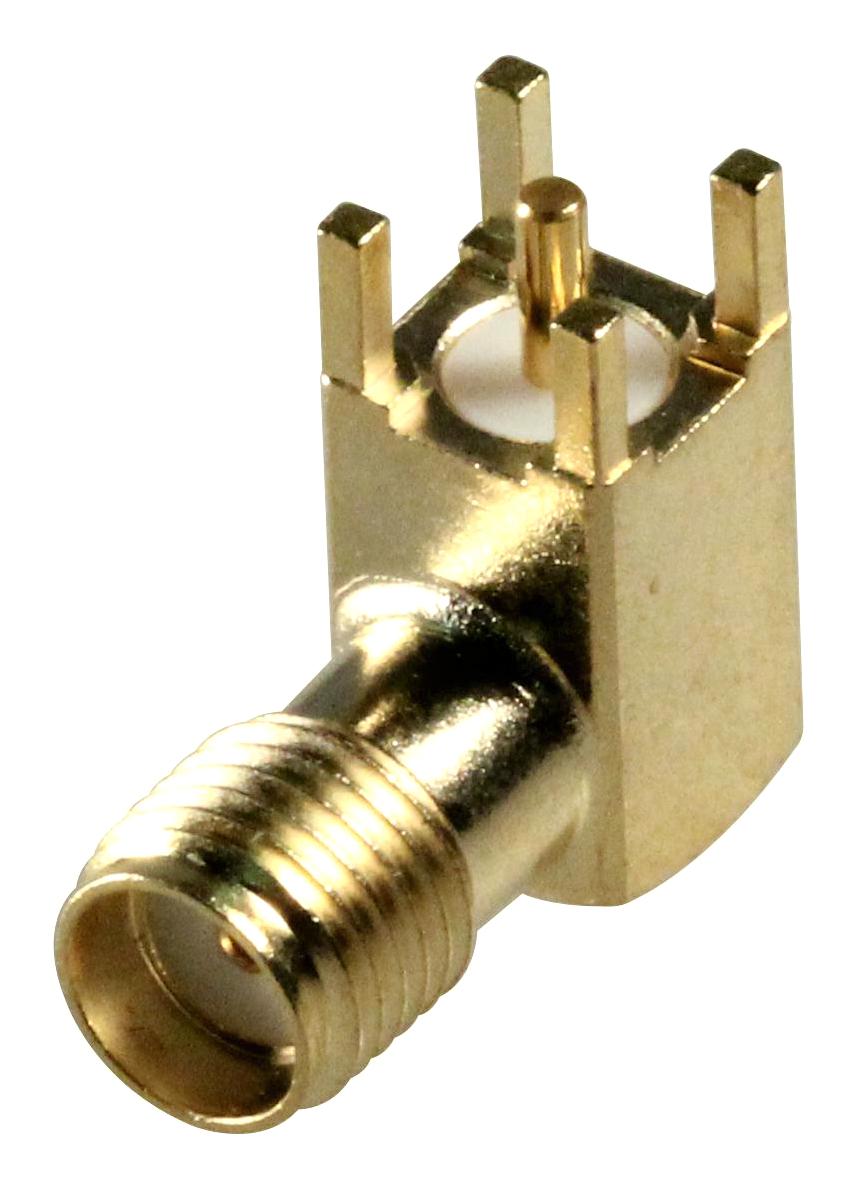

MULTICOMP PRO MP19495TGG SMA Connector
The 19-49-5-TGG from Multicomp Pro is a right-angle SMA jack connector designed for PCB applications, offering reliable RF performance from DC to 12.4 GHz. This semi-precision connector features gold-plated center contact and body, PTFE insulation for excellent dielectric properties, and conforms to MIL-STD-348 A standards. Made of brass and beryllium copper, it withstands harsh environments with an operating temperature range of -65°C to +165°C. Ideal for RF communication, industrial, and networking uses, it ensures stable, high-quality signal connections with a robust design.
MULTICOMP PRO MP19495TGG SMA Connector Specifications:
- Impedance: 50Ω
- Frequency Range: DC to 12.4 GHz
- Voltage Rating: 335V Max.
- Material: Brass body, Beryllium Copper center contact, PTFE insulation
- Finish: Gold-plated contacts and body, minimal gold thickness 3 microinches
- Operating Temperature: -65°C to +165°C
- Interface: MIL-STD-348A compliant
- Mounting: PCB through hole, right angle
- Dimensions: Millimetres (Inches) with mounting hole spacing of 13.565 mm
- VSWR: 1.23 Max.
- Beryllium Copper center contact with gold coating 50µ
- Insulation: PTFE for dielectric stability
Buy the Multicomp Series SMA Connector: MP19495TGG
Purchase your Multicomp Series SMA connector MP19495TGG online today and enhance your RF and microwave communication systems. This right-angle PCB mount jack features gold-plated contacts, PTFE insulation, and a high operating frequency up to 12.4 GHz. Designed with durable brass and beryllium copper, it complies with MIL-STD-348A standards, providing excellent signal integrity in demanding environments. Suitable for industrial, networking, and RF application setups, this connector ensures consistent performance, quick installation, and long-lasting reliability in your electronic projects. Buy now for dependable high-frequency connectivity.
Order your Multicomp Series SMA connector MP19495TGG today and ensure reliable RF connections for your high-frequency projects with superior durability and performance.
