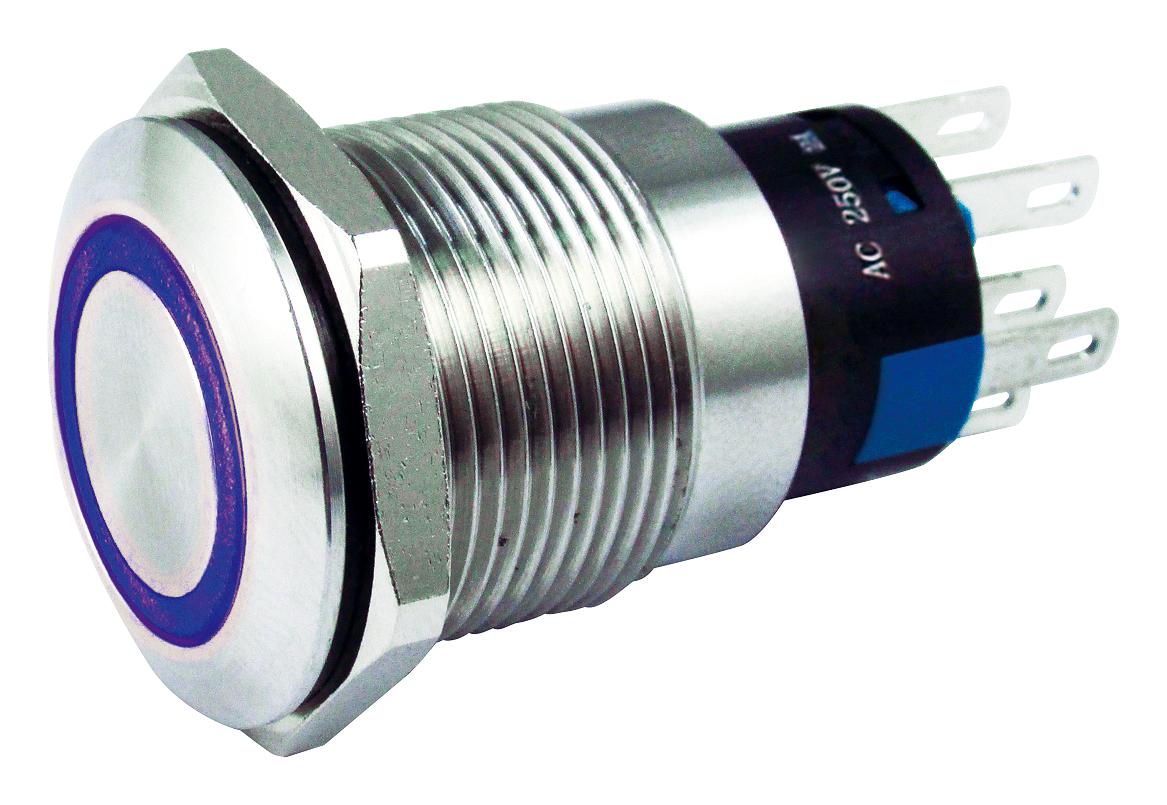

MULTICOMP PRO MC010914 Vandal Resistant Switch
The illuminated vandal resistant switch features options for flush or domed mounting, with contact configurations including 1NO + 1NC and 2NO + 2NC. Available in various LED colors like red, green, and blue, it is constructed from stainless steel with a dielectrically rated voltage of 250V and current of 5A. It withstands harsh conditions with a degree of protection IP67, operates from -30°C to +80°C, and is resistant to vibration and shocks. Suitable for outdoor or industrial applications, it offers reliable electrical and mechanical lifespan with solder terminals and cylindrical dimensions for easy installation.
MULTICOMP PRO MC010914 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colours: Red, Green, Blue
- Switch Operation: Maintained, Momentary
- Contact Configuration: 1NO + 1NC, 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MO Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Operating limit: 200 m/S², Damage limit: 500 m/S²
- Mechanical Life: 1,000,000 cycles (Momentary), 250,000 cycles (Maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the ITLuminated Series Vandal Resistant Switch: MC010914
Order the vandal resistant illuminated switch online today for durable outdoor use and industrial applications. Featuring stainless steel construction, IP67 protection, and multiple LED colors, this switch guarantees long-lasting operation even in harsh conditions. Its robust design, with high dielectric strength and vibration resistance, ensures reliable performance over millions of cycles. Ideal for control panels, outdoor installations, and security systems, its easy solder terminal connection simplifies installation. Enhance your automation and control solutions with this high-quality, vandal-proof switch available for quick purchase online.
Get ITLuminated Series Vandal Resistant Switch MC010914 today—built for outdoor durability and reliable performance in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010914?
You can click on the BUY or RFQ button to purchase MC010914 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010914?
You can download the MC010914 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010914?
MULTICOMP PRO
