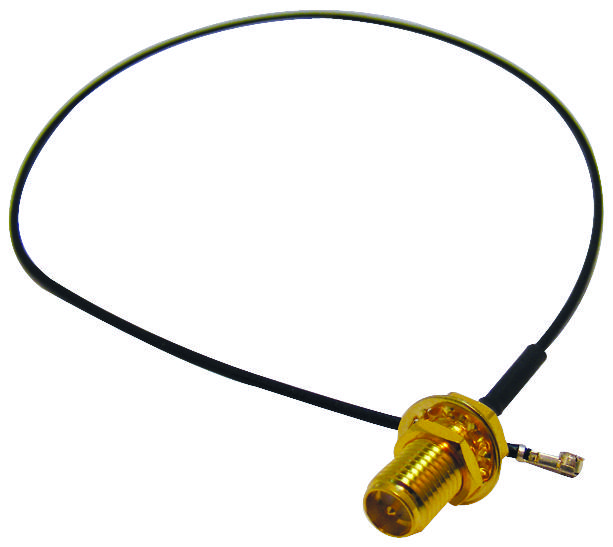

MULTICOMP PRO R134G7210100CD RF Coaxial Cable Assembly
The R-134G7210100CD is a durable 100mm RF coaxial cable assembly with IP67 waterproof rating, suitable for outdoor RF communication. It features an IP67 RP-SMA bulkhead connector and a U.FL plug, utilizing a low-loss 1.37mm cable optimized for high-frequency applications. Designed with a 50Ω impedance, it operates from DC to 3 GHz, and can withstand temperatures from -20°C to +70°C. The assembly supports a maximum working voltage of 60 Vrms, dielectric withstand voltage of 200 Vrms, and has at least 500 MΩ insulation resistance. Its black sheath ensures durability and optimal performance in rugged environments.
MULTICOMP PRO R134G7210100CD RF Coaxial Cable Assembly Specifications:
- Connector Type A: RP-SMA bulkhead
- Connector Type B: U.FL plug
- Cable Assembly Type: RF coaxial cable
- Cable Length: 100mm / 3.94 inches
- External Diameter: 1.37mm
- Jacket Color: Black
- Impedance: 50Ω
- Frequency Range: DC to 3 GHz
- Maximum Working Voltage: 60 Vrms
- Minimum Dielectric Withstanding Voltage: 200 Vrms
- Minimum Insulation Resistance: 500 MΩ
- Maximum VSWR: 1.4:1
- Maximum Insertion Loss: -1.3 dB
- Temperature Range: -20°C to +70°C
- IP Rating: IP67 waterproof
- Application: Outdoor RF communication
Buy the multicomp R-134G7210100CD – Reliable RF Coaxial Cable for Industrial Applications
Order the multicomp RF coaxial cable assembly R-134G7210100CD online today. With IP67 waterproof protection, it features a bulkhead RP-SMA connector and U.FL plug, perfect for outdoor RF communication. Its 1.37mm low-loss cable operates from DC to 3 GHz, supporting high-performance data transmission. Designed for rugged environments, it withstands temperatures from -20°C to +70°C, has a maximum working voltage of 60 Vrms, and ensures reliable insulation and minimal signal loss. Purchase now for dependable outdoor RF connectivity.
Get multicomp R-134G7210100CD today—built for high-frequency outdoor RF communication with waterproof IP67 protection.
