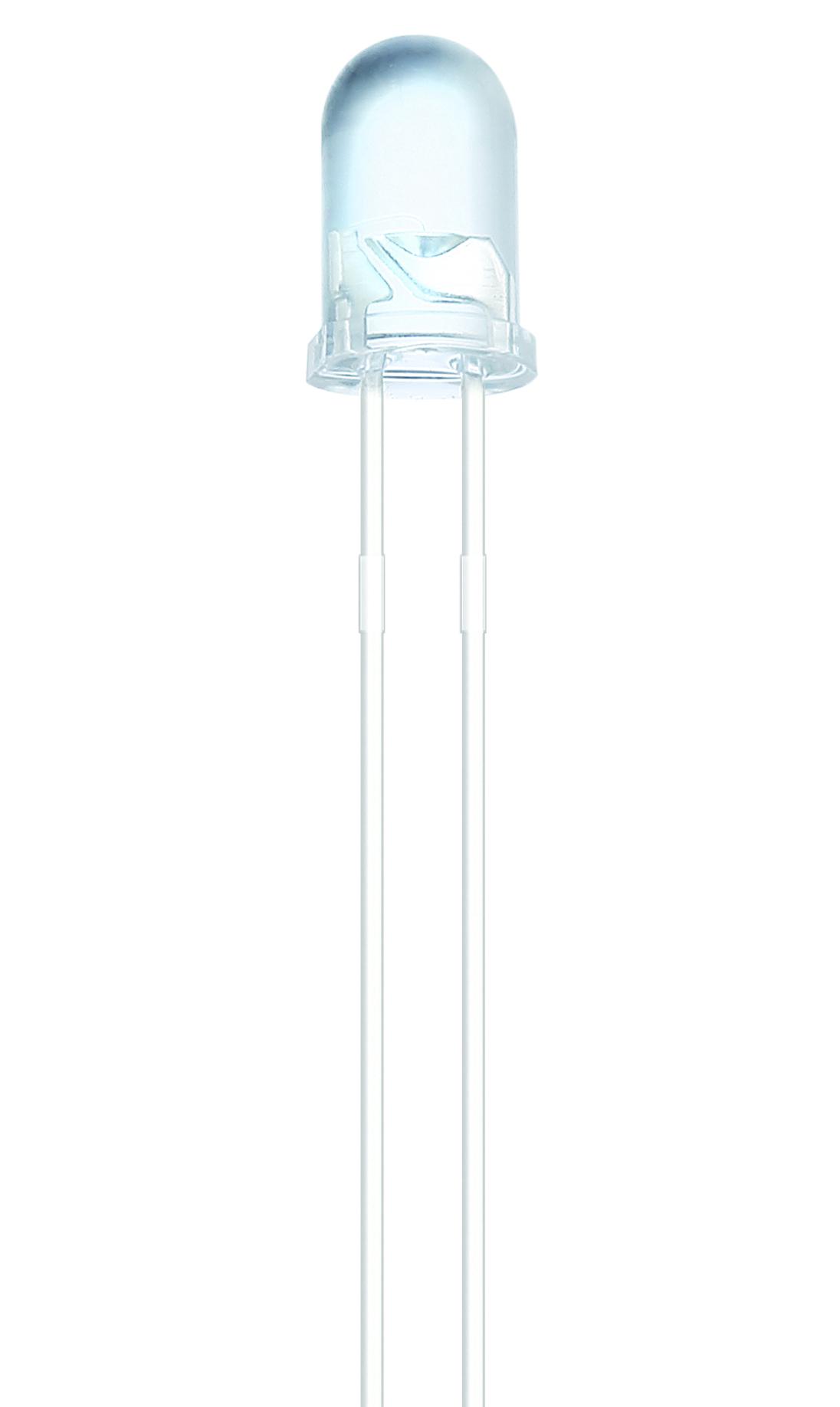

MULTICOMP PRO MP000439 High-brightness Green LED
This ultra green LED lamp features a 5mm round type narrow angle lens with a 20° viewing angle and a water clear lens. It uses InGaN dice material, emitting at 525nm, and has a luminous intensity of up to 25,000mcd. Designed for precise applications, it operates at a forward voltage of 3.2V to 3.5V with a recommended current of 20mA. This RoHS-compliant LED is suitable for various industrial and electronic display applications, with robust electrical and optical characteristics suitable for demanding environments.
MULTICOMP PRO MP000439 High-brightness Green LED Specifications:
- Dice Material: InGaN
- Emitted Colour: Ultra Green
- Lens Colour: Water Clear
- Peak Wavelength: 525nm
- Viewing Angle: 20 Deg.
- Luminous Intensity: 25000mcd
- Forward Voltage: 3.2V to 3.5V
- Power Dissipation: 85 mW
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Peak Forward Current: 100 mA (Duty 1/10)
- Recommended Operating Current: 20 mA
- Reverse Voltage: 5V
- Reverse Current: 10μA
- Electrostatics Discharge (ESD): 200V
- Soldering Temperature: 260°C for 5 seconds
- Dimensions: 5mm diameter (T-1 3/4), tolerance +0.25mm
Buy the Multicomp Ultra Green LED 5mm – Reliable Narrow Angle for Industrial Applications
Order the high-brightness green LED online today to enhance your electronic displays and industrial lighting projects. This 5mm ultra green LED delivers a luminous intensity of 25,000mcd with a narrow 20° viewing angle, making it ideal for precise visual indicators. With an InGaN dice material, robust construction, and RoHS compliance, it ensures durability and safety. Enjoy fast delivery and competitive pricing when you purchase this LED online, perfect for manufacturing, automation, and custom electronic solutions that require high efficiency and reliable performance.
Buy Multicomp Ultra Green LED 5mm now and experience unmatched brightness, reliability, and efficiency for your electronic projects.
