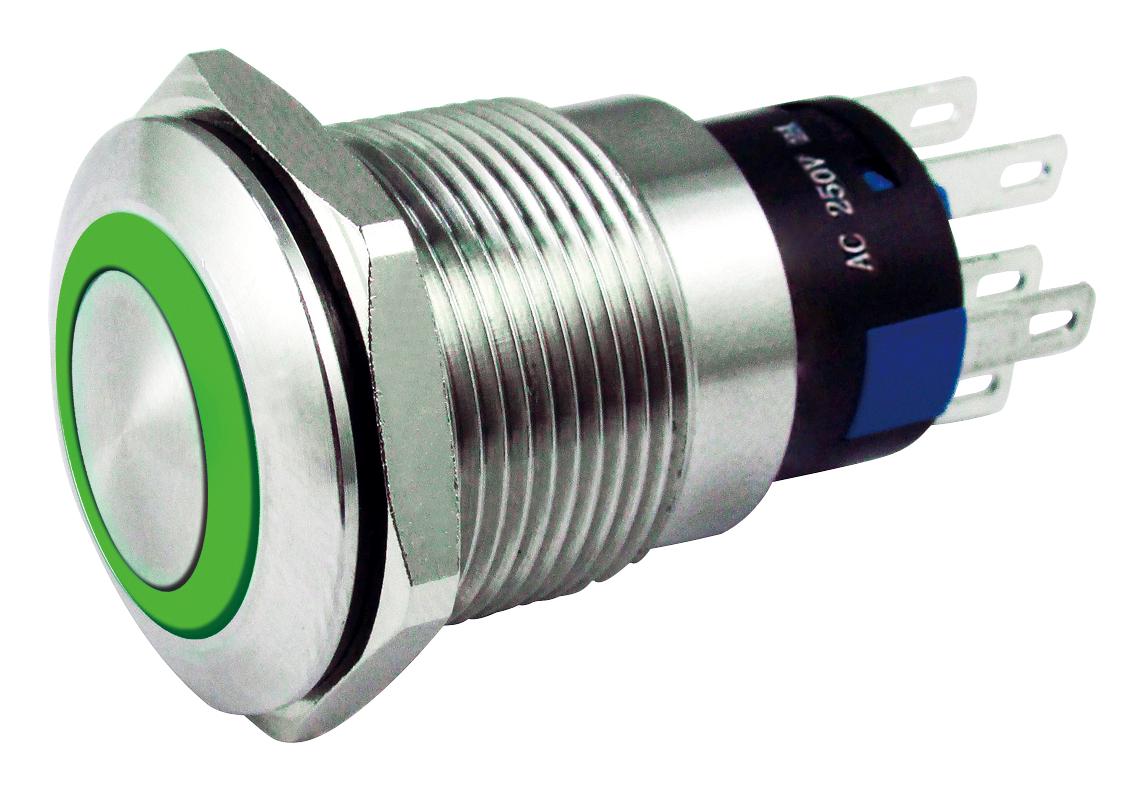

MULTICOMP PRO MC010927 Vandal Resistant Switch
This illuminated vandal resistant switch offers durability and reliable operation in harsh environments, featuring different contact configurations, LED colors, and mounting options. Designed with stainless steel material, it provides IP67 protection against dust and water, ensuring longevity in industrial settings. The switch operates at voltages up to 250V with various contact arrangements, including maintained and momentary functions. It is suitable for applications requiring rugged, vandal-proof switches with clear illumination for visibility in low light conditions, making it ideal for security, industrial control, and public installations.
MULTICOMP PRO MC010927 Vandal Resistant Switch Specifications:
- Rated Voltage: 250V
- Rated Current: 5A
- LED Voltage: 12V
- LED Colours: Red, Green, Blue
- Switch Operation: Maintained, Momentary
- Contact Configuration: 1NO + 1NC / 2NO + 2NC
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC/min; Between terminals of the same poles: 1,000V AC/min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: -25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 200 m/S² (Operating limits), 500 m/S² (Damage limits)
- Mechanical Life: 1,000,000 cycles (momentary), 250,000 cycles (maintained)
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 122g
Buy the Multicomp Series Vandal Resistant Switch: MC010927
Enhance your security and industrial control systems with this rugged vandal resistant illuminated switch. Built with stainless steel, it offers IP67 protection, making it resistant to dust and water. Its LED indicator provides clear visibility in low-light conditions, while its robust design supports up to 250V and 5A. Suitable for both maintained and momentary operations, this switch withstands harsh environments, ensuring reliable performance. Perfect for public, industrial, and security applications requiring durable, vandal-proof switching solutions with high longevity and style.
Order your multicomp series vandal resistant switch MC010927 today and give your projects durable, vandal-proof switch solutions with clear LED illumination.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010927?
You can click on the BUY or RFQ button to purchase MC010927 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010927?
You can download the MC010927 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010927?
MULTICOMP PRO
