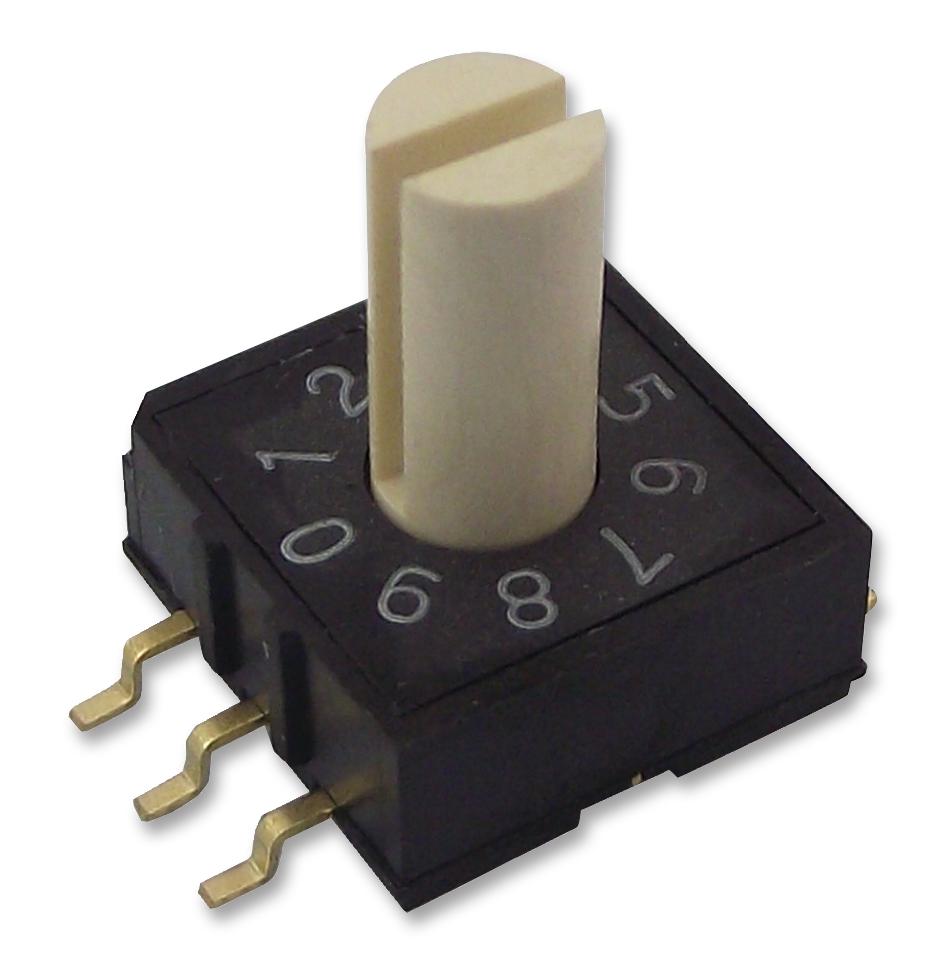

MULTICOMP PRO MCRM3HAF16RVB Rotary Switch
The rotary switch series offers high-quality mechanical switches rated for up to 20,000 cycles with gold-plated contacts over alloy copper for reliable electrical performance. Constructed with UL94V-0 high-temperature thermoplastic, these switches are suitable for demanding industrial applications. Available in multiple configurations such as 10 or 16 positions, through-hole and surface-mount types, with various actuator sizes. They feature a maximum operating temperature of +80°C, and electrical ratings of 50V DC at 100mA, ensuring dependable switching in complex circuits. Designed for durability and RoHS compliance, these switches are ideal for automation and control systems.
MULTICOMP PRO MCRM3HAF16RVB Rotary Switch Specifications:
- Mechanical Life: 20,000 steps
- Operating Temperature: -25°C to +80°C
- Material: UL94V-0 high-temp thermoplastic
- Contact Material: Alloy Copper with Gold Plated over Nickel
- Electrical Life: 20,000 cycles
- Switching Rating: 24V DC, 25mA
- Non-Switching Rating: 100mA, 50V DC
- Contact Resistance: 100mΩ max (initial), 200mΩ (final)
- Insulation Resistance: 100MΩ min at 250V DC
- Voltage Proof: 250V AC for 1 min
- Dimensions vary depending on model with general tolerance ±0.2mm
- Suitable for THT and surface mounting
- RoHS compliant
Buy the Buy Multicomp Rotary Switch Part Number MCRM3HAF16RVB Online
Enhance your automation and control systems with the durable and reliable Rotary Switch, ideal for industrial applications. Featuring gold-plated contacts on alloy copper for low resistance and high performance, it offers an impressive lifetime of up to 20,000 cycles. Crafted from UL94V-0 high-temperature thermoplastic, this switch withstands demanding environments. Available in multiple configurations, including 10 or 16 positions, through-hole, and surface-mount options. RoHS compliant, rated for up to 50V DC at 100mA, it guarantees dependable operation for complex circuit designs. Purchase online now for fast delivery and competitive pricing.
Order your Multicomp Series MCRM3HAF16RVB rotary switch today and ensure reliable control in your electronic or automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCRM3HAF16RVB?
You can click on the BUY or RFQ button to purchase MCRM3HAF16RVB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCRM3HAF16RVB?
You can download the MCRM3HAF16RVB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCRM3HAF16RVB?
MULTICOMP PRO
