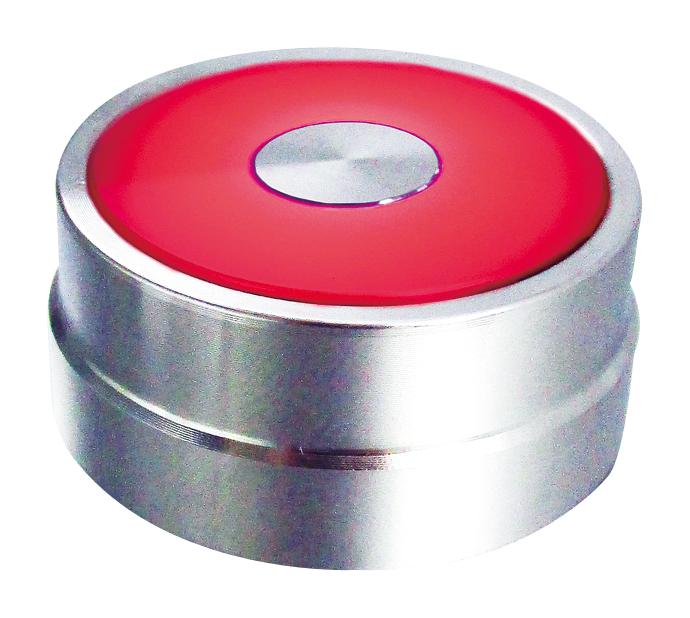

MULTICOMP PRO MC010961 Industrial Vandal Switch
The flush illuminated vandal resistant switch features a robust metal bezel-ring and silhouette-ring design, rated for 600V and 210A. It operates with LED indicators in green, red, and blue, powered at 12V AC/DC. The switch offers high dielectric strength, insulation resistance, and vibration and shock resistance, making it ideal for industrial applications. It has a degree of protection IP65, suited for harsh environments, with a mechanical life of 1,000,000 operations and electrical life of 100,000 cycles. Compatible with mounting holes of 22mm or 30mm, it ensures durability and reliable performance.
MULTICOMP PRO MC010961 Industrial Vandal Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2000V AC between live parts and ground, 1000V AC between terminals
- Contact Resistance: 50mΩ Max (Initial)
- Insulation Resistance: 100MQ Min (500V DC)
- Operating Humidity: 45 to 85% RH (no condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to +55°C
- Vibration Resistance: 5 to 55Hz, amplitude 0.5mm
- Shock Resistance: 1000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: 1,000,000 momentary, 100,000 maintained operations
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
- Mounting Hole Diameter: 22mm / 30mm
Buy the Multicomp MC010961 – Reliable Industrial Push Button for Industrial Applications
Purchase the multicomp MC010961 industrial vandal resistant switch online today and experience unmatched durability and performance. This switch features a sturdy metal bezel and silhouette ring, rated for 600V and 210A, with LED indicators available in green, red, and blue. Its IP65 rating ensures protection against dust and water, making it ideal for industrial settings. With a mechanical life of 1,000,000 operations and electrical life of 100,000 cycles, it guarantees reliable performance in harsh environments. Easy to mount with 22mm or 30mm holes, it’s your dependable switching solution.
Get multicomp MC010961 today—built for precision and long-lasting durability, perfect for demanding industrial environments with dependable LED indicators.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010961?
You can click on the BUY or RFQ button to purchase MC010961 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010961?
You can download the MC010961 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010961?
MULTICOMP PRO
