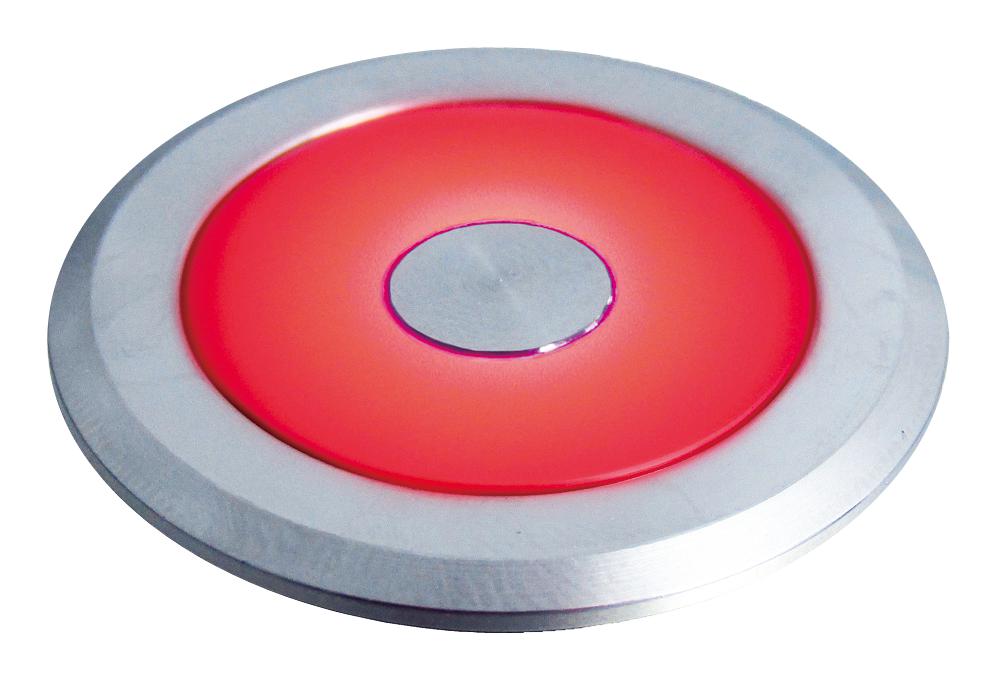

MULTICOMP PRO MC010979 Vandal Resistant Switch
This illuminated vandal-resistant switch features a robust metal bezel-ring design suitable for industrial and outdoor environments. It offers a rated voltage of 600V and a current capacity of 210A, with LED indicators available in green, red, and blue. The switch's dielectric strength exceeds 2,000V AC, and it provides IP65 protection, making it resistant to dust and water. It supports a wide operating temperature range from -30°C to +80°C and can withstand vibrations and shocks typical in demanding applications. This switch is ideal for control panels, outdoor machinery, and vandal-prone areas, ensuring durability and reliable operation under harsh conditions.
MULTICOMP PRO MC010979 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min, Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1-25°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² damage limits, 100 m/s² operating limits
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy Multicomp Pro Vandal Resistant Switch Part Number MC010979 Online
Purchase the durable and vandal-resistant switch online today to ensure reliable operation in demanding industrial or outdoor settings. Featuring IP65 protection, robust aluminium construction, and versatile LED indicator options, this switch is ideal for control panels, outdoor machinery, and vandal-prone areas. Its high electrical and mechanical lifespan guarantees long-term performance, reducing maintenance costs. Easy to install and designed for tough environments, buying this switch online ensures quick delivery, competitive pricing, and access to technical support from trusted suppliers, making it the perfect choice for your control needs.
Buy Multicomp Pro MC010979 now and experience unmatched durability and reliable control in harsh environments.
