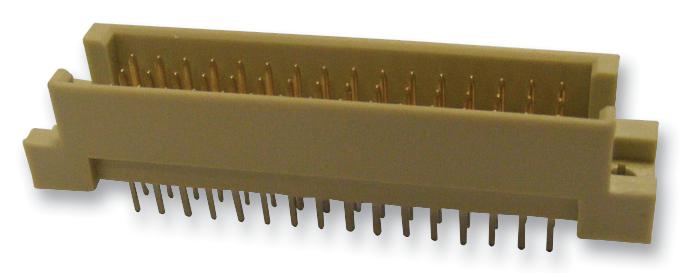

MULTICOMP PRO 4161248ABCMS 48 Contact DIN Connector
The MULTICOMP PRO 41612-48ABC-MS is a DIN 41612 connector, a standardized connector type widely used in industrial automation, instrumentation, and control systems. This particular model features 48 contacts arranged in a 3-row configuration with a 2.54mm pitch, providing a compact and efficient solution for connecting multiple signals. The connector's robust construction and gold-plated contacts ensure reliable performance even in harsh environments. It is ideal for applications requiring high-density connections and secure signal transmission.
MULTICOMP PRO 4161248ABCMS 48 Contact DIN Connector Specifications:
- Current Rating: 2A AC / DC
- Voltage Rating: 250V AC / DC
- Max. Contact Resistance: 30 mΩ
- Min. Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 1,000V AC for one minute
- Operating Temperature Range: -25°C to +125°C
- Insulator Material: PBT
- Plug Contact Material: Copper alloy
- Socket Contact Material: Phosphor bronze
- Plating: Selective gold plated
- Number of Positions: 48
- A Dimension: 38.1 mm
- B Dimension: 48.2 mm
- C Dimension: 53.25 mm
- D Dimension: 44.5 mm
