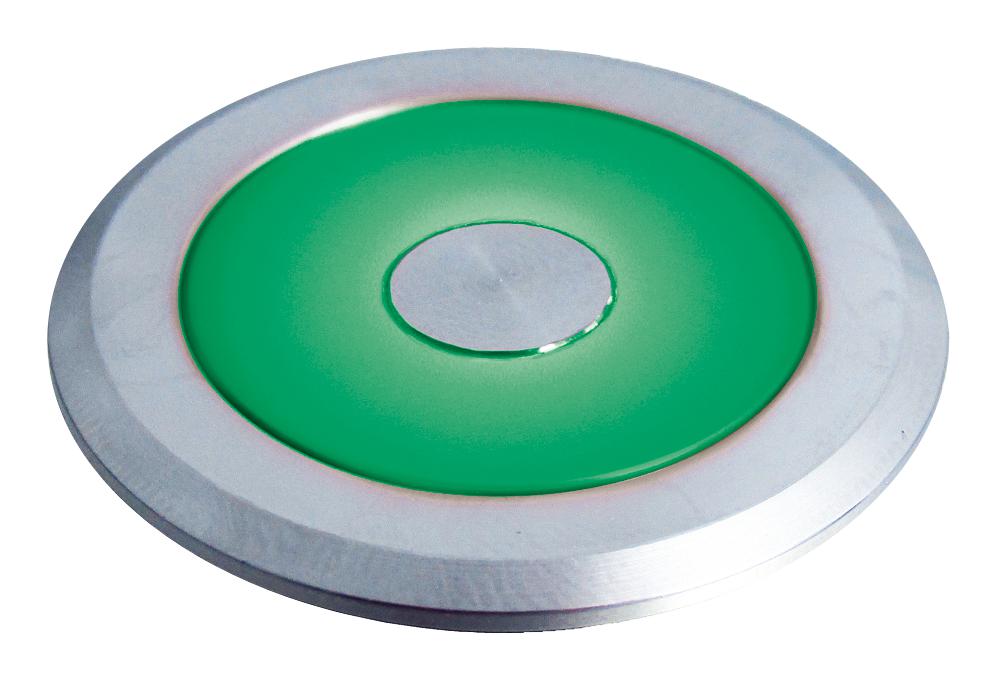

MULTICOMP PRO MC010981 Illuminated Vandal Switch
The illuminated vandal-resistant switch with metal bezel and silhouette rings is designed for robust industrial applications. It features a flush mount top, rated for 600V and 210A, with LED indicators in green, red, and blue for visual status indication. Constructed from durable aluminium, it has a dielectric strength of 2,000V AC/min between live parts and ground, and an insulation resistance of 100MQ min. It withstands harsh conditions with IP65 protection, vibration, and shock resistance, and offers a mechanical life of 1,000,000 cycles and electrical life of 100,000 cycles, making it ideal for industrial control panels.
MULTICOMP PRO MC010981 Illuminated Vandal Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1-25°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 1,000 m/s², Operating limits: 100 m/s²
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Buy Multicomp Pro Illuminated Vandal Switch Part Number MC010981 Online
Secure your industrial control panels with the high-quality illuminated vandal-resistant switch. Designed for durability, it features a robust aluminum body, IP65 protection, and LED indicators in various colours. Rated for 600V and 210A, it withstands harsh conditions while offering excellent dielectric and insulation resistance. Its long mechanical and electrical life ensure dependable performance over extensive cycles. Perfect for industrial automation, control stations, and rugged applications, this switch combines safety, visibility, and durability for optimal operational reliability.
Buy Multicomp Pro MC010981 now and experience unmatched durability and reliability in harsh industrial environments.
