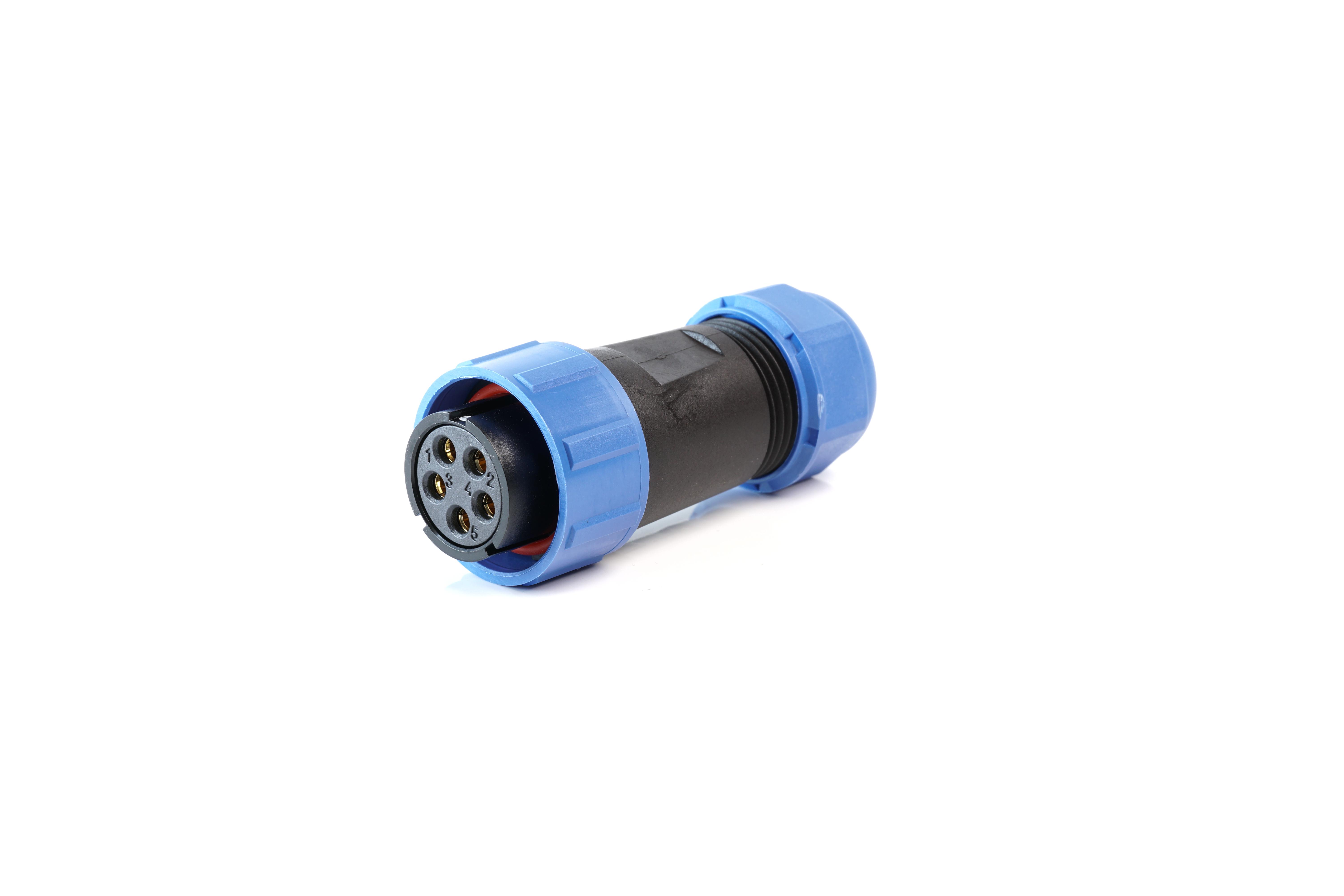

MULTICOMP PRO MP002674 Circular Connectors
The MP-T21 IP67 series connectors are rugged and reliable, offering quick bayonet coupling for fast, secure connections in harsh environments. Suitable for indoor and outdoor applications, these connectors feature panel, cable, and inline configurations, with 2 to 12 poles options. Made with nylon66 shells, PPS inserts, and brass contacts with gold plating, they boast an IP67 rating, ensuring water and dust resistance. Termination options include solder and screw connections, supporting wire sizes up to 1.5 mm². An IP67-rated dust cap provides extra protection, making these connectors ideal for automation, industrial, and medical systems requiring durable, high-quality connections.
MULTICOMP PRO MP002674 Circular Connectors Specifications:
- Shell Material: Nylon66
- Insert Material: PPS (Max. Temperature 260°C)
- Contact Material: Brass with gold plating
- IP Rating: IP67
- Coupling Type: Bayonet
- Temperature Range: -40°C to +80°C
- Mating Cycle: 500
- Contact Resistance: 1 mQ
- Rated Voltage: 400-500 V AC
- Rated Current: 5-30 A
- Number of Contacts: 2, 3, 4, 5, 7, 9, 12
- Termination: Solder or Screw
- Wire Size (Solder): 0.75/18 mm²
- Wire Size (Screw): 1.5/15 mm²
- Cable Outer Diameter: Up to 12mm
- Cap: IP67-rated dust cap available
Buy the Buy Multicomp Circular Connectors IP67 Part Number MP002674 Online
Discover the robust multicomp IP67 circular connectors designed for industrial and outdoor environments. Featuring bayonet coupling for quick connections, these connectors come in various configurations with up to 12 contacts. Made from nylon66 shells, PPS inserts, and brass contacts with gold plating, they resist dust, water, and temperature extremes. Termination options include solder and screw types, supporting wire sizes up to 1.5 mm². An IP67-rated dust cap provides added protection, ensuring dependable performance in demanding applications like automation, medical devices, and security systems. Buy online now for reliable, easy-to-install industrial connectivity.
Order your multicomp IP67 series connectors today and secure your industrial connections with durable, quick-coupling reliability suitable for harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002674?
You can click on the BUY or RFQ button to purchase MP002674 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002674?
You can download the MP002674 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002674?
MULTICOMP PRO
