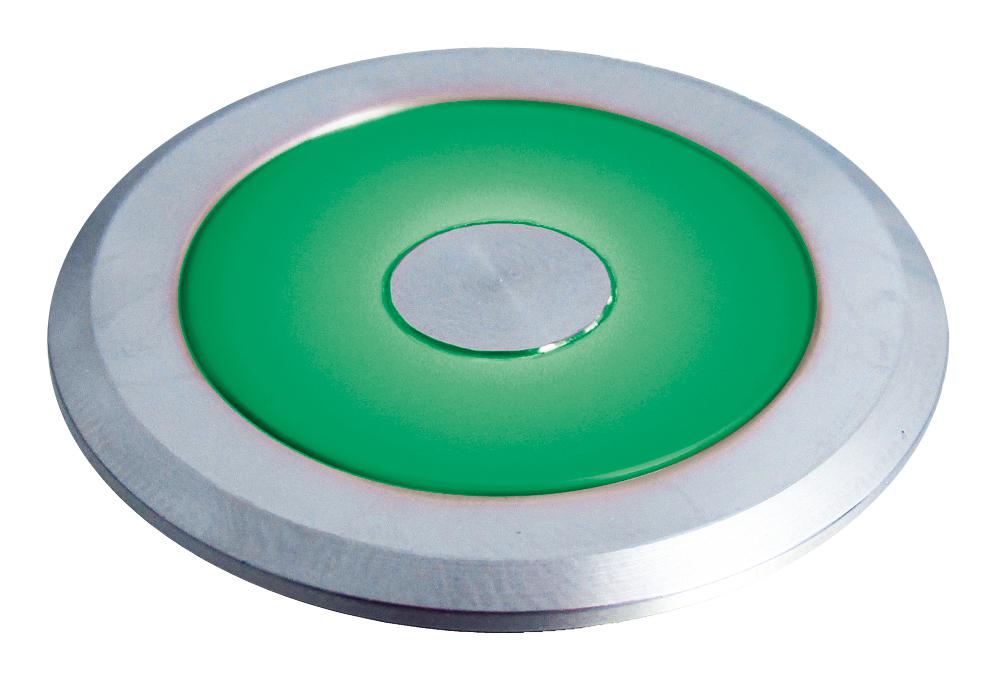

MULTICOMP PRO MC010990 Vandal-Resistant Switch
The flush illuminated vandal-resistant switch features a metal bezel-ring and sturdy construction, rated for 600V and 210A, suitable for industrial control panels. It offers LED illumination with color options of green, red, and blue, and is designed for mounting hole diameters of 22mm or 30mm. Its dielectric strength exceeds 2,000V AC, with high insulation resistance, vibration, and shock resistance, making it durable under harsh conditions. Suitable for machinery, automation, and safety systems, it guarantees IP65 protection and long mechanical and electrical lifespan, ideal for demanding industrial environments.
MULTICOMP PRO MC010990 Vandal-Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2,000V AC / min between live part and ground
- Insulation Resistance: 100MQ Min. (500V DC)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: Momentary 1,000,000 cycles, Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
- Operating Temperature: 1-25°C to 55°C
- Storage Temperature: -30°C to +80°C
- Operating Humidity: 45 to 85% RH
- Dimensions: Suitable for 22mm or 30mm mounting holes
Buy the MultiComp Pro MC010990 – Reliable Vandal-Resistant Switch for Industrial Applications
Protect your machinery and control systems with the vandal-resistant switch from MultiComp Pro. Featuring LED illumination in multiple colors, robust aluminium construction, and rated for 600V and 210A, this switch ensures reliable operation in harsh industrial settings. Its IP65 rating guarantees protection against dust and water ingress, while the long mechanical and electrical lifespan reduces maintenance costs. Easy to install with adaptable mounting options, this switch enhances safety and control, making it a perfect choice for industrial automation, safety panels, and machinery control systems. Purchase online today for timely delivery and excellent support.
Buy MultiComp Pro MC010990 now and experience high durability and dependable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010990?
You can click on the BUY or RFQ button to purchase MC010990 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010990?
You can download the MC010990 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010990?
MULTICOMP PRO
