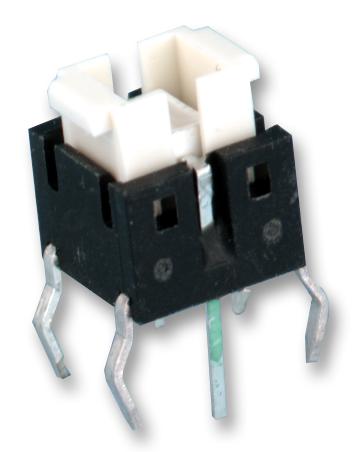

MULTICOMP PRO TLL62BG Tactile Switch
The TLL-62BG tactile switch is a high-quality, ultraminiature industrial switch designed for reliable operation in demanding environments. Featuring a mechanical lifespan of 200,000 cycles and a contact resistance of 100 milliohms, it ensures durable performance. The switch has a 7mm external height, 6.1mm width, and 4.8mm length, with a 20,000 no. of electrical operations series. Made with stainless steel contact discs, brass terminals with silver plating, and high-temperature nylon thermoplastic, it supports a maximum dielectric strength of 250VAC and insulation resistance of 100 megaohms, ensuring high safety and performance in industrial applications.
MULTICOMP PRO TLL62BG Tactile Switch Specifications:
- Mechanical Terminals: Through Hole
- External Length / Height: 7mm height, 6.1mm width, 4.8mm length
- No. of Electrical Operations: 20,000
- Series: TLL
- Switch Operation: SPST
- Operation Force: 50gf
- Stroke: 0.31mm
- Operation Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Electrical Life: 200,000 cycles minimum
- Rating: 50mA, 12V DC
- Contact Resistance: 100mΩ Max
- Insulation Resistance: 100MΩ at 500VDC
- Dielectric Strength: 250VAC for 1 min
- Contact Arrangement: SPST
- Materials: Contact Disc - Stainless Steel, Terminal - Brass with Silver Plating, Base - LCP high-temperature thermoplastic
- Soldering Process: Wave Soldering Max 260°C for 5 sec, Hand Soldering at 608°F (320°C) for approximately 2 seconds
- Color: Black body, Brown stem
Buy the Buy multicomp TLL-62BG Tactile Switch Part Number TLL62BG Online
Purchase the multicomp TLL-62BG tactile switch online today to ensure high-performance, durability, and reliable operation in your industrial projects. Featuring a SPST configuration, stainless steel contacts, and a high-temperature thermoplastic body, this switch offers a lifespan of 200,000 cycles, excellent insulation resistance, and dielectric strength. Its compact size of 7mm height and 6.1mm width makes it suitable for tight spaces. With a maximum contact resistance of 100 milliohms and rated for 50mA at 12V DC, this switch is ideal for demanding environments where reliability counts.
Order your multicomp series TLL-62BG tactile switch today and give your projects the dependable quality they deserve.
