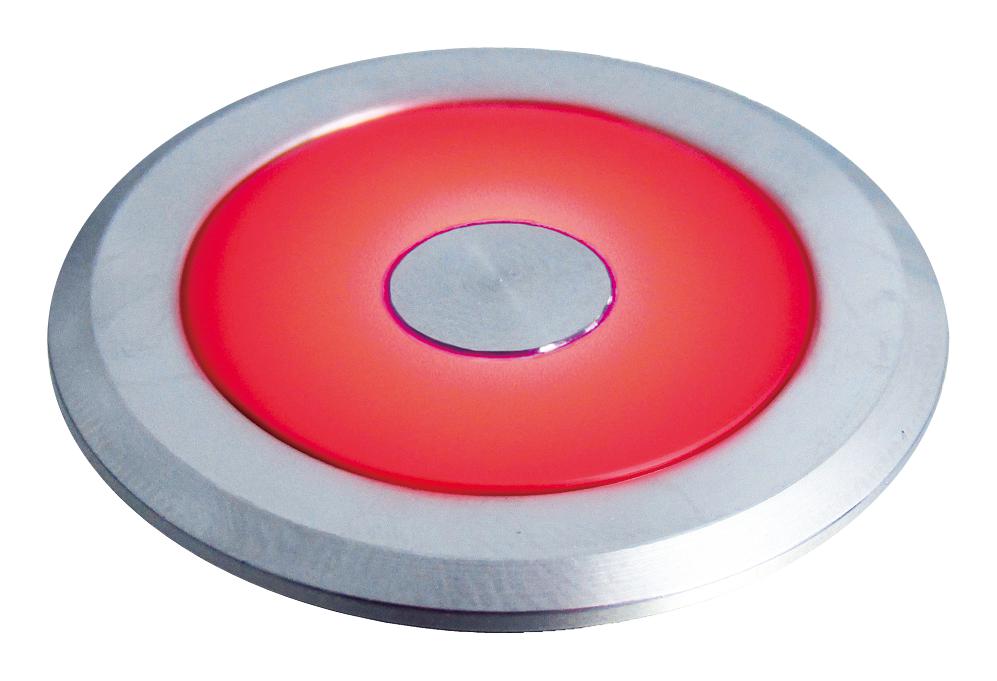

MULTICOMP PRO MC010991 Vandal-resistant switch with LED indicator
The flush illuminated vandal-resistant switch features a metal bezel-ring and silhouette design, suitable for demanding industrial environments. It offers various contact configurations, including single and multiple poles, with options for maintained or momentary operation. Rated at 600V and 210A, it incorporates LED indicators in green, red, or blue, for visual status indication. Constructed from durable aluminium, it withstands high dielectric voltages and vibration, with an IP65 rating for protection against dust and water ingress. The switch is easy to install with a 22mm or 30mm mounting hole, making it ideal for control panels and industrial applications, ensuring reliable operation in harsh conditions.
MULTICOMP PRO MC010991 Vandal-resistant switch with LED indicator Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1°C to 55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² damage limit, 100 m/s² operating limit
- Mechanical Life: Momentary: 1,000,000 cycles, Maintained: 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
- Mounting Hole Diameter: 22mm / 30mm
- Mounting Type: Flush mount
Buy the Cambridge Series Switch: Flush Illuminated Vandal Resistant Switch MC010991
Order the vandal-resistant flush-mounted switch online today to benefit from durable construction, excellent electrical ratings, and versatile contact configurations. Designed for demanding industrial settings, it features LED indicators in multiple colors for easy status recognition, and a robust aluminum housing that withstands vibration, shock, and harsh environmental conditions. With IP65 protection and simple mounting options, this switch ensures reliable operation and safety in control panels and machinery, making it an essential component for industrial automation and control systems.
Buy Cambridge Series Switch MC010991 now and experience unmatched reliability and performance in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010991?
You can click on the BUY or RFQ button to purchase MC010991 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010991?
You can download the MC010991 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010991?
MULTICOMP PRO
