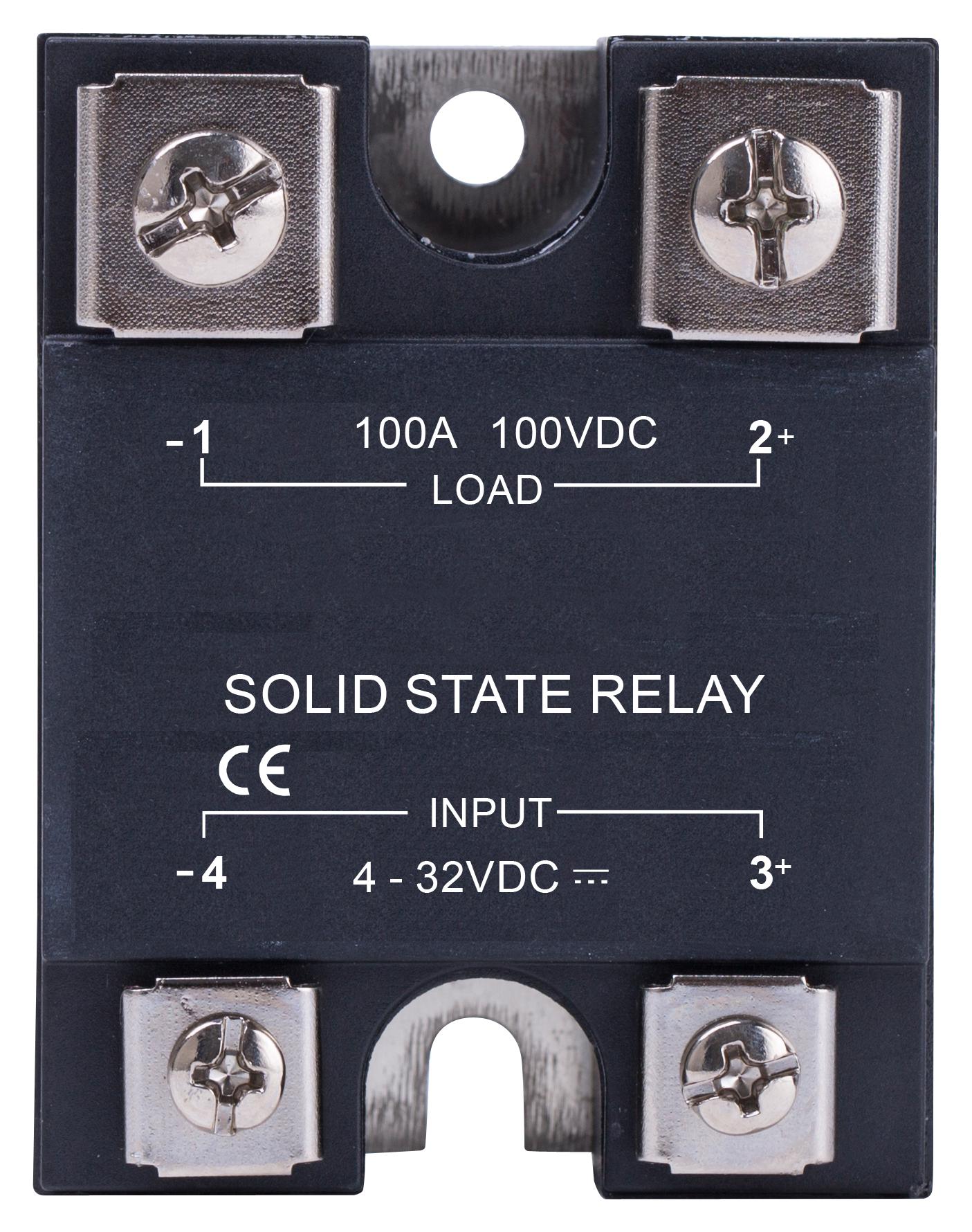

MULTICOMP PRO MC002360 DC Switch Relay
This panel mount solid state relay features a zero crossing control mechanism, suitable for DC loads up to 100A and 100V DC. It employs MOSFET and IGBT outputs for low impedance switching, with a control voltage range of 4-32V DC. Designed for industrial applications including DC heating, motor control, solar energy, and medical equipment, it offers a dielectric strength of 22500V AC rms, a switching time of less than 100 microseconds, and a maximum off-state leakage current of 0.1mA. Its compact design ensures reliable performance with high input/output isolation, making it ideal for demanding DC switching tasks.
MULTICOMP PRO MC002360 DC Switch Relay Specifications:
- Control Voltage Range: 4-32V DC
- Minimum Turn-on Voltage: 4V DC
- Minimum Turn-off Voltage: 1V DC
- Maximum Input Current: 28mA @ 32V DC
- Output Voltage Range: 50V DC to 1200V DC
- Load Current Range: 7A to 100A
- Maximum Surge Current: 250A @ 10ms
- Maximum Turn-on Time: <100us
- Maximum Turn-off Time: <100us
- Maximum Off-State Leakage: 0.1mA at rated voltage
- Maximum On-state Resistance: 6.5mΩ to 30mΩ depending on current
- Maximum On-State Voltage Drop: 1.75V at rated current
- Dielectric Strength: >2500Vrms input/output
- Ambient Operating Temperature: -30°C to +80°C
- Storage Temperature: -30°C to +100°C
- Weight: 95g
Buy the Multicomp Series DC Switch Relay: MC002360
Experience the high-performance reliability of the Multicomp Pro DC switch relay designed for demanding DC loads up to 100A and 1200V. Featuring zero crossing control, MOSFET and IGBT output stages, and a control voltage range of 4-32V DC, it ensures efficient switching with minimal impedance. Compact and robust, this relay provides excellent electrical isolation with dielectric strength exceeding 2500Vrms, making it ideal for industrial environments such as motor control, solar energy systems, and medical equipment. Purchase online today for dependable DC switching performance.
Get Multicomp MC002360 relay today—built for precise and reliable DC switching in industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002360?
You can click on the BUY or RFQ button to purchase MC002360 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002360?
You can download the MC002360 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002360?
MULTICOMP PRO
