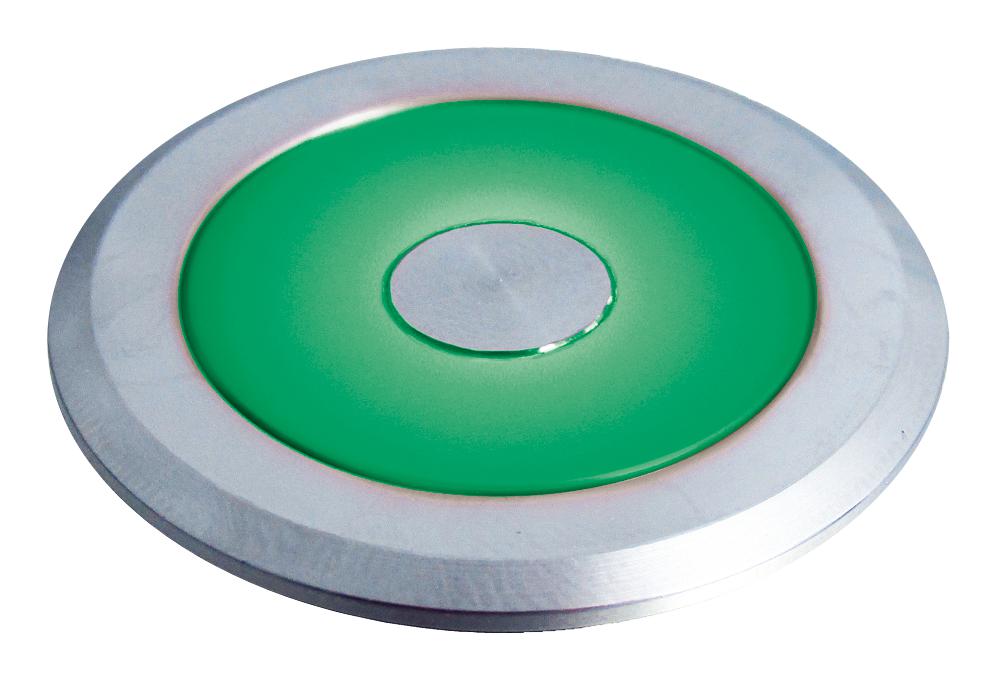

MULTICOMP PRO MC010996 Vandal Resistant Switch
The Flush Illuminated Vandal Resistant Switch features a durable metal bezel-ring and silhouette-ring design, suitable for demanding environments. It offers stainless steel construction, rated for 600V voltage and 210A current. The switch is illuminated with LED options in green, red, and blue, with a top flush mount and IP65 protection degree. It withstands vibration and shock, with a mechanical life of 1 million cycles and electrical life of 100,000 cycles, making it ideal for industrial automation and control panels. Easy mounting for 22mm or 30mm holes ensures versatile installation for various industrial applications.
MULTICOMP PRO MC010996 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1°C to 55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/s² damage limit; 100 m/s² operating limit
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the Multicomp Series Vandal Resistant Switch: MC010996
Order the Vandal Resistant Switch for robust and reliable performance in harsh industrial environments. With IP65 protection, multiple LED color options, and high electrical and mechanical durability, this switch is ideal for automation panels and control systems. Easy to install in 22mm or 30mm holes, it ensures seamless integration into your existing infrastructure. Select from maintained or momentary configurations with aluminum construction for longevity. Purchase online today to enhance your industrial control solutions with a highly durable and visually clear switch.
Buy Multicomp MC010996 now and experience unmatched reliability and industrial-grade performance for demanding control applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010996?
You can click on the BUY or RFQ button to purchase MC010996 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010996?
You can download the MC010996 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010996?
MULTICOMP PRO
