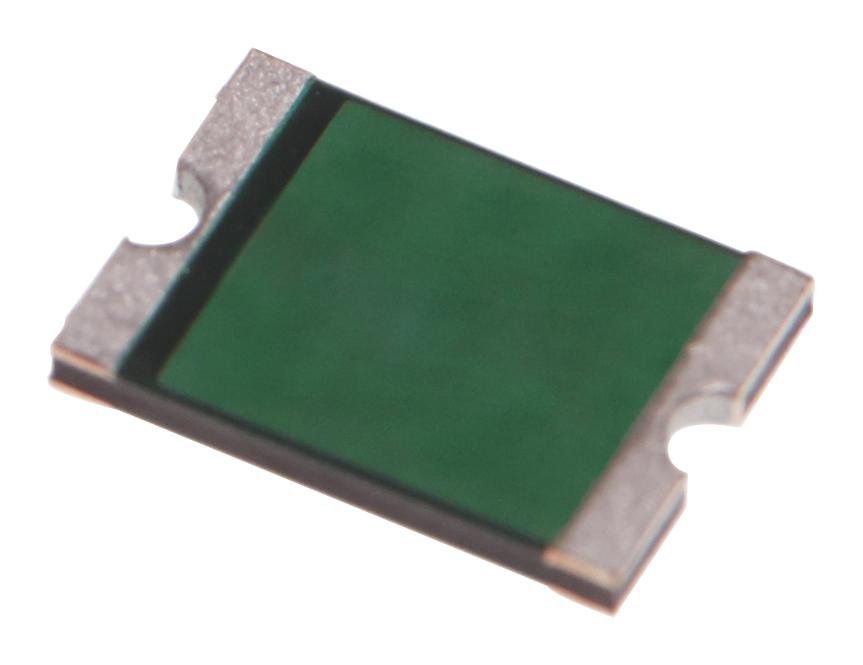

MULTICOMP PRO MC011017 Surface Mount PTC Fuse
The multicomp surface mountable PTC resettable fuse offers a compact solid-state solution for high-density circuit protection. Designed to trip quickly under fault conditions, it operates efficiently across a temperature range of -40°C to 85°C. Suitable for all high-density boards, its halogen-free design ensures environmental safety. With reliable electrical characteristics, including rated currents from 0.5A to 2.5A and voltages up to 60V, this fuse provides dependable overcurrent protection, making it ideal for modern electronic applications requiring rapid, resettable circuit protection.
MULTICOMP PRO MC011017 Surface Mount PTC Fuse Specifications:
- Hold current: 0.5A to 2.5A
- Trip voltage: 33V to 60V
- Maximum resistance: Ri 0.3Ω to 1.4Ω
- Maximum power dissipation: Up to 4.5W
- Trip time: 0.085 to 25 seconds at specified currents
- Dimensions: Length approximately 6.73mm to 7.98mm, width approximately 4.8mm to 5.6mm
- Pad Material: Pure Tin
- Temperature Range: -40°C to 85°C
- RoHS Compliant
- Halogen Free
- Reflow soldering compatible with recommended profiles
- Device resistance at 23°C prior to tripping: 0.3Ω to 1.4Ω
Buy the Multicomp Series 2920 PTC Resettable Fuse: MC011017
Secure your electronic designs with the multicomp surface mount PTC resettable fuse. Featuring rapid trip response, wide operating temperature, and halogen-free construction, it protects circuits effectively. Suitable for high-density applications, it offers reliable, reusable overcurrent protection ideal for modern electronics. Easy to reflow solder with recommended profiles, this fuse complies with RoHS standards, ensuring safety and sustainability. Enhance your circuit protection with this compact, dependable, and environmentally friendly device available for quick online purchase.
Order your multicomp Series 2920 MC011017 resettable fuse today and ensure reliable overcurrent protection for your electronic projects.
