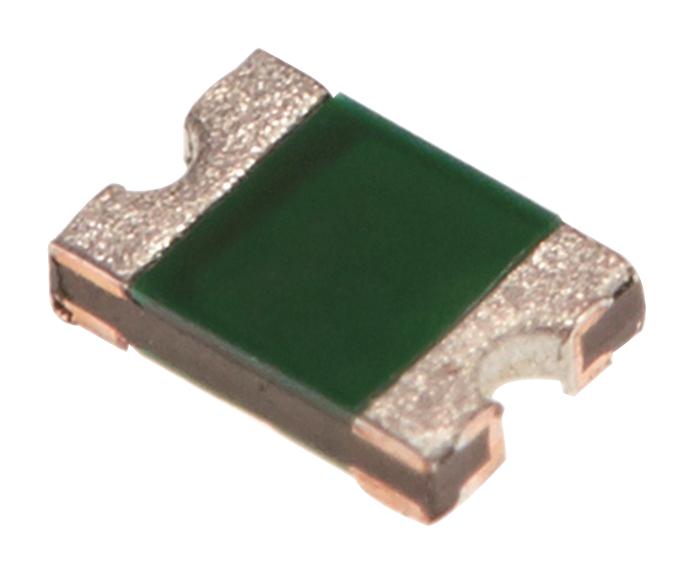

MULTICOMP PRO MC011418 Surface Mountable PTC Fuse
This surface mountable PTC resettable fuse is designed for high-density circuit boards, offering solid-state protection with faster trip times and lower resistance. Suitable for applications requiring a maximum voltage of 24V DC and operation currents from 0.1A to 1.1A, it features halogen-free construction and complies with RoHS standards. The fuse's dual thermal derating curve and reflow soldering characteristics ensure reliable performance in thermal and vibration environments, making it ideal for modern electronic circuits requiring dependable overcurrent protection.
MULTICOMP PRO MC011418 Surface Mountable PTC Fuse Specifications:
- Operation Current: 0.1A to 1.1A
- Maximum Voltage: 6V to 24V DC
- Temperature Range: -40°C to +85°C
- RoHS Compliant
- Material: Pure Tin terminal pads
- Soldering Characteristics: Meets industry standards
- Physical Dimensions: Length 2-23mm, Width 1.2mm, Height 1.5mm (approximate)
- Peak Temperature for Soldering: 260°C
- Reflow Profile: Preheat 150-200°C, Peak 260°C
- Halogen Free, Thermal Derating Curve Available
- Electrical Characteristics (23°C): In (A) 0.1, 0.5, 1.1; Vmax (V DC): 24, 9, 6; Max Current (A): 0.5, 0.5, 0.6; Power Dissipation: 0.5-0.8W; Trip Time: 0.2-1.5 sec
- Pad Layout: Nominal A 1.2mm, B 1mm, C 1.5mm
- Solder Reflow and Rework Compatible
Buy the Multicomp PTC0405 – Reliable Overcurrent Protective Fuse for Industrial Applications
Protect your electronic projects with confidence by ordering the multicomp surface mountable PTC fuse online. Designed for modern circuit boards, it offers fast trip times, low resistance, and reliable overcurrent protection. Suitable for a wide voltage range of 6V to 24V DC and operation currents from 0.1A to 1.1A, this fuse features RoHS compliance and halogen-free construction. Ensure safety and durability in your electronic designs by purchasing this high-quality fuse from our online store today.
Order your Multicomp SeriesMC011418 0.5A, 9V DC surface mount fuse today and ensure your electronic circuits are protected with dependable, high-quality devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC011418?
You can click on the BUY or RFQ button to purchase MC011418 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC011418?
You can download the MC011418 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC011418?
MULTICOMP PRO
