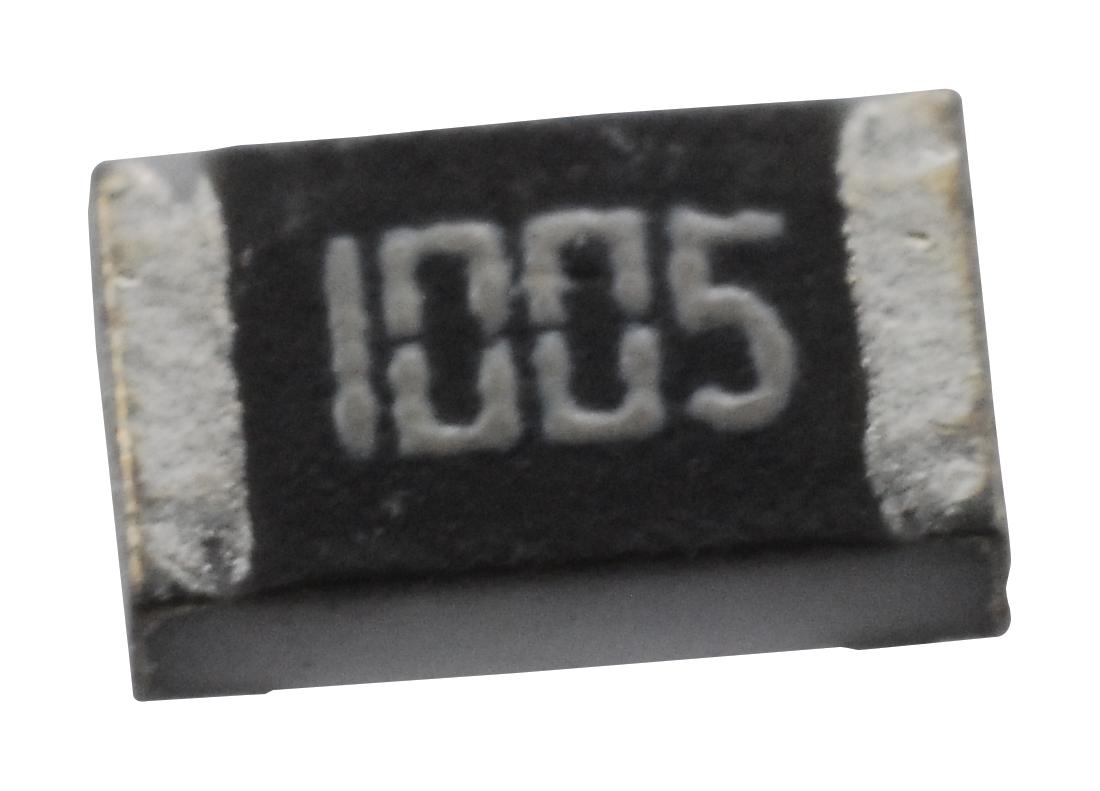

MULTICOMP PRO MC01W0805110M0 thick film resistor
The Multicomp Pro MC series thick film chip resistors provide resistance values from 1 ohm to 10 megaohms, including E96 and E24 series. Available in sizes like 0805, these low-profile, lightweight SMD components suit wave and reflow soldering, reducing manufacturing costs. They support voltages up to 150V in 0805 size, with tolerance options of ±1%, ±2%, and ±5%, and power ratings of 62.5mW to 125mW. Operating between -55°C and +155°C, they feature varying TCR from ±400ppm/°C to ±100ppm/°C, and are ideal for electronic assemblies requiring precise, reliable resistance.
MULTICOMP PRO MC01W0805110M0 thick film resistor Specifications:
- Size: 0805 (2.0 x 1.25 mm)
- Resistance Range: 1Ω to 10MΩ
- Series: E96, E24
- Tolerance: ±1%, ±2%, ±5%
- Power Rating: 62.5mW, 100mW, 125mW
- Maximum Voltage: 150V (0805 size)
- Temperature Coefficient: ±400ppm/°C (1Ω–10Ω), ±200ppm/°C (11Ω–100Ω), ±100ppm/°C (>100Ω)
- Operating Temperature: -55°C to +155°C
- Soldering: Wave and reflow compatible
- Support Jumpers for all sizes
- Applications: Precision electronics, automation, control systems
Buy the Buy Multicomp Thick Film Resistor Part Number MC01W0805110M0 Online
Purchase your Multicomp Pro MC series thick film chip resistor MC01W0805110M0 online now to ensure reliable performance. These resistors provide resistance values from 1Ω to 10MΩ, suited for various electronic and industrial applications. They feature small size, lightweight design, and support wave and reflow soldering, which helps cut manufacturing costs. With multiple tolerance levels and operating temperatures from -55°C to +155°C, they are ideal for precision electronics. Buy now for fast delivery and trusted quality.
Order your Multicomp thick film resistor MC01W0805110M0 today and enhance your electronic projects with dependable, precision resistance components.
